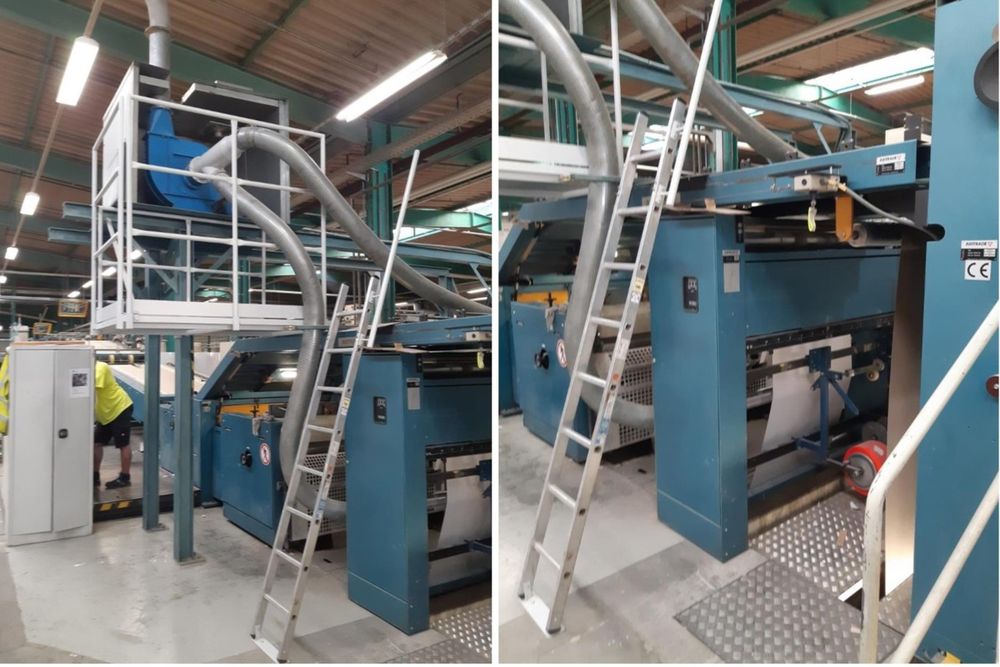

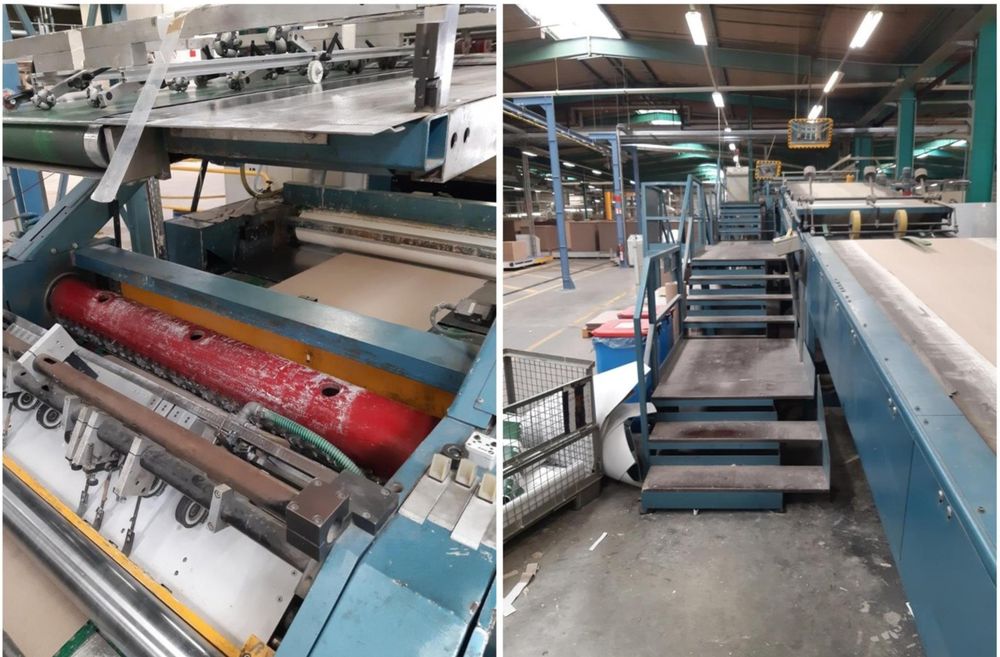

Bobst Asitrade MCP III Laminator maschine

Unit for B & E flute
Working width 1400 mm
Hydraulic unit renewed in 2024.

Total length 144 m

Corrugating rolls: 1x B-flute, 1x E-flute
Max. speed in current machine condition approx. 100 m/min

Consiting of:

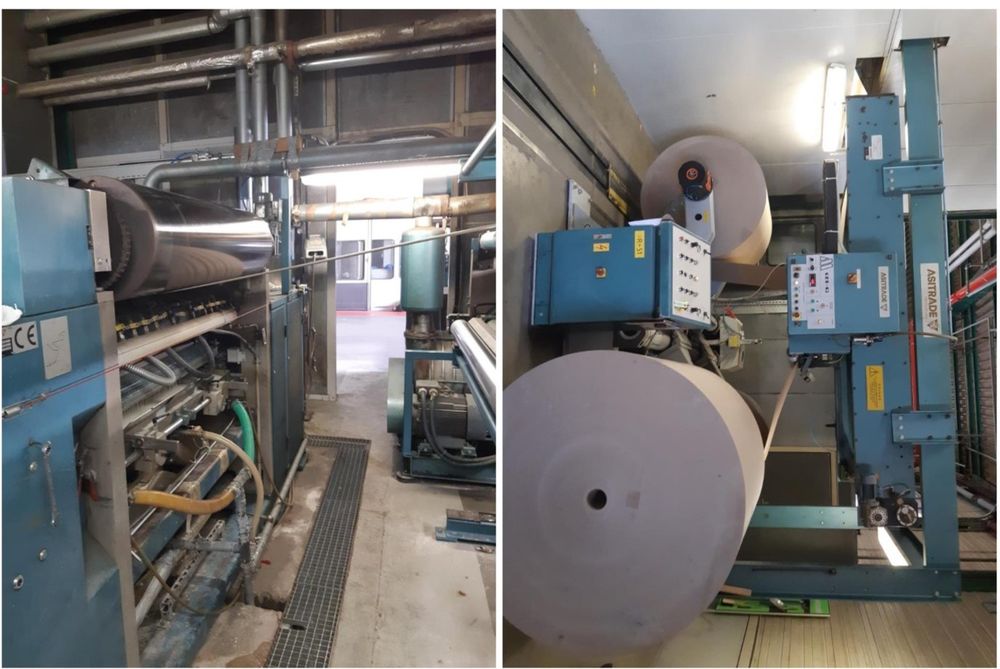

2 PAPER ROLL STANDS
2 PAIRS OF RAILS WITH CONVEYOR TROLLEYS
2 SPLICERS GRS-62
1 PAPER TRANSFER BRIDGE FOR THE CORRUGATED WEB
1 ASITRADE MODULE FACER MF 250-E
1 MODULE UNIT
1 PREHEATING CYLINDER FOR THE CORRUGATED WEB
1 PAPER TRANSFER BRIDGE FOR THE TOP WEB
1 WATER SPRAY DEVICE
1 TANDEM HEATER
1 PULLING MECHANISM
1 CONVEYOR BELT
1 AUTOMATIC TRACK ALIGNMENT
1 LAMINATING MACHINE MODEL MPC III-E The laminating machine
consists of the following elements:
Mabeg sheet feeder
Sheet feed bridge
Longitudinal cutter
Glue applicator
Folding table
Cross cutter with spiral knife
Laminating unit MPC
Single press section
5m Belt press
Control console
Electrical control cabinet

1 AUTOMATIC NON-STOP DEPILTER

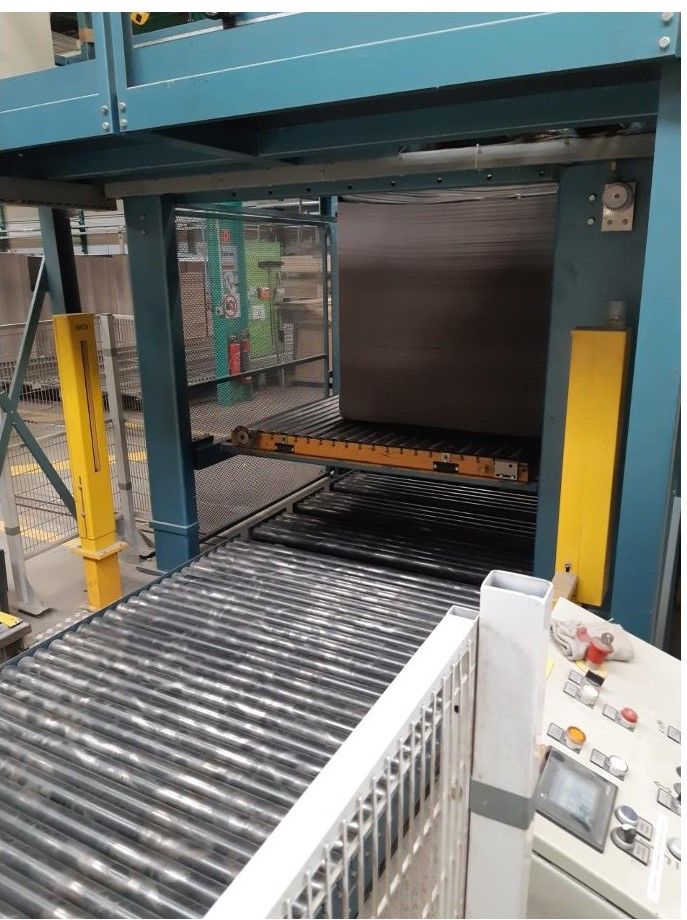

1 AUTOMATIC STACK CHANGING UNIT

Additional units:
Glue foamer (cold glue)
Sheet counter
Spray bar
Tearing thread
Reinforcing tape

Note: it is recommended to refurbish the machine before reinstallation

Location EU Schengen area
