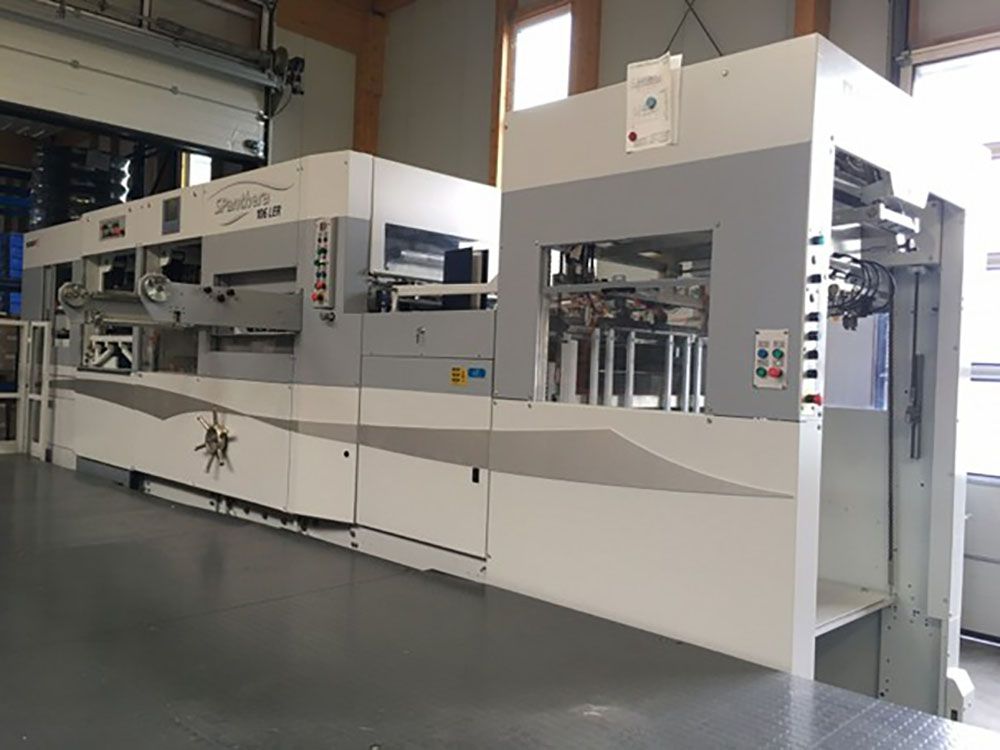

Bobst Autoplatine® SPanthera 106 LER

Die-cutting machine with stripping and blanking capability Included Standard

Options:
E-3 Upper quick-lock frame
E-5 Compensation plate

General Machine Information:
Machine Type: Automatic flatbed die-cutting machine with stripping and blanking
Category: High-performance die-cutter for folding carton & packaging
Production Status: “Machine under power
Format & Substrate Capabilities
Max. Sheet Size: 760 × 1,060 mm
Min. Sheet Size: approx. 350 × 400 mm
Max. Cutting Size: 745 × 1,055 mm
Gripper Margin: approx. 8–10 mm
Paperboard Thickness: 0.1 – 2,000 g/m² (paper to heavy board)
Corrugated Board: up to N-flute / F-flute (depending on tooling)
Max. Cutting Pressure: up to 260 t (BOBST Autoplatine standard

Production & Performance:
• Maximum Mechanical Speed: up to 9,000 sheets/hour
• Automatic register system: Included
• Blanking Capability: Yes (LER = Logistics, Extraction, Removal = full blanking section)
• Stripping Section: Full automatic 3-frame stripping
• Non-Stop Functionality:
o Non-stop feeder (continuous pile logistics)
o Non-stop delivery (automatic pile change)
