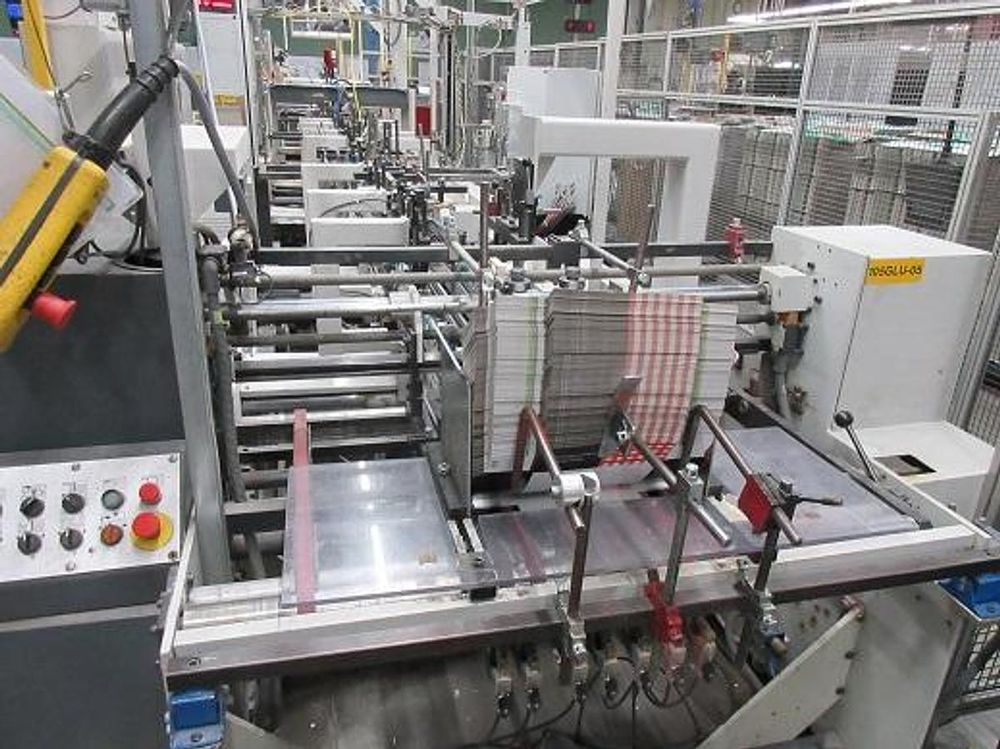

Bobst Domino 110 M-II

Folder Gluer with 4/6 corner
Max. blank width : 1100 mm (43 1/4”)
Min. blank width : 126 mm (5”)
Min. blank width (with mini attachment): 56 mm (2 ¼”)
Max. blank length : 800 mm (31 ½”)
Min. blank length : 60 mm (2 3/8”)
Processed materials : Up to 700 gsm and E & B flute
Operation speed from 20 – 400 m/Min.
Machine voltage : 380 V / 85.1 Amp.
Equipped for straight-line, lock-bottom, double wall and 4 & 6 corner cartons

Equipment details :
8 feed belts with dust removal device, Feeder with pile vibrator
Pre-breaker carriers, left and right
Folding section carriers, left and right
Central transport conveyors in pre-fold and central conveyors in folding section
Lower left disc gluing unit
Manual format adjustment (Matic system and motors were removed)
New servo backfold shafts and Baumuller motors from Bobst installed in 2012
Upper hold down cables for 4 corner cartons with lid
5 or 6 backfold hooks for 4/6 corner included
Lower transfer station motorised and adjustable
Pneumatic kicker and counter at delivery conveyor
Pneumatic controlled press station
Operator remote control
