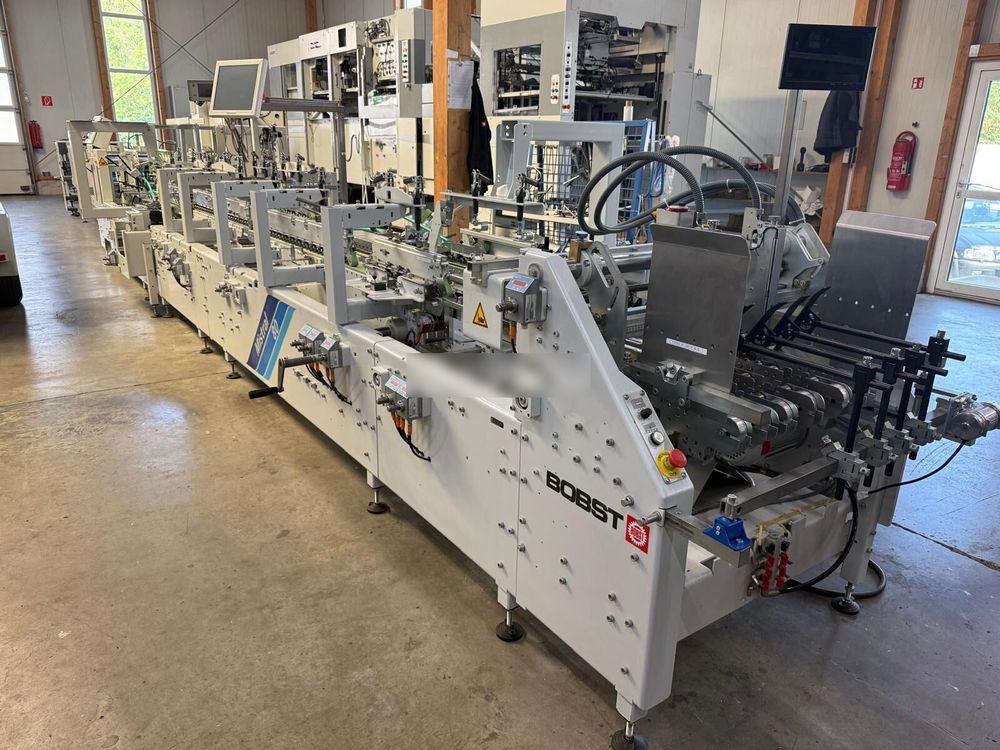

Bobst Fuego Mistral 80 - A2 CS

Equipment:
Feeder :
Type: Accufeed system with vibrator and tooth guide
Blank alignment: Automatic, left and right
Special features: High-precision blank positioning and orientation control

Pre-Folding Section :
Configuration: Left and right pre-folding units
Transport system: Lower central transport with dual drive
Pre-crease capability: Glue flap pre-folding directly on belt with complete box control

Primary Folding Unit:
Folding style: Straight-line fold (Längsnaht)
Box bottom module: A2 crash-lock bottom (Faltboden)
Corner device: Double corner (Doppelrand)

Gluing System:
Upper glue unit: Electronic HHS system with 2 glue application heads
Lower glue unit: Disk-type glue station (left side)
Glue control: Electronically regulated for precision application

Quality Control & Ejection:
Quality assurance: HHS system with integrated barcode code reader (Codeleser)
Glue seam monitoring: Real-time glue line inspection
Faulty box ejection: Flipper ejector for 100% rejection of defective boxes
Video monitoring: Transfer station video surveillance system

Transport & Conveying:
Primary transport: Upper and lower central transport through folding section
Additional drives: Kickers for box separation and control
Nip belt system: Pneumatic, extra-long press belt for consistent nipping pressure

Control & Positioning System:
Main controller: Bobst C.U.B.E. (Control Unit Bobst Electronics)
Positioning system: CS (Computer Set) with digital indicators
Format memory: Multiple job presets with automatic position calculation
Operator interface: Mobile wireless remote control (Funkfernbedienung)
Digital displays: Real-time position and production data feedback

Delivery Conveyor-Stacker:
Type: Integrated delivery conveyor with belt transport system
Configuration: Modular conveyor with powered roller transport
Stacking platform: Collection and stacking area for finished boxes

Technical Details :
Parameter Value
Operating Speed 20–400 m/min / 64–1,313 ft/min
Maximum Carton Width 800 mm / 31.5 in
Minimum Carton Width 120 mm / 4.23/32 in
Maximum Folded Box Thickness 12 mm / 15/32 in
Inching Speed 20 m/min / 64 ft/min
Machine Width 2,020 mm / 79.5 in
Material Compatibility Solid board, corrugated (N, F, E)
Maximum Board Weight 800 g/m2 / 164 lbs/msf
Main Motor Power 7.5 kW
Connected Load 60 kVA
Voltage By specification
Control System Bobst C.U.B.E. with digital positioning (CS)
