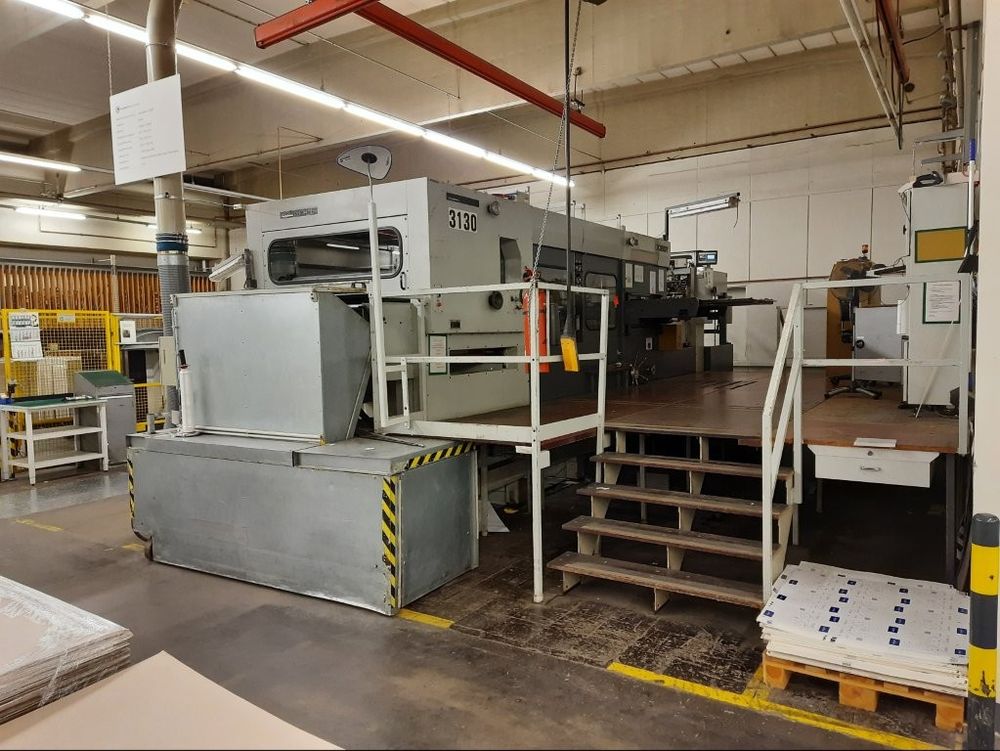

Bobst I 130 ER

Sheet Formats :
Maximum sheet size:920 x 1,300 mm
Minimum sheet size:450 x 580 mm
Working format:
– Max. 890 x 1,270 mm (open chase)
– Max. 900 x 1,300 mm (closed chase)3.

Material Specifications:
Maximum board thickness:1.5 mm (cardboard)
Minimum grammage:90 g/m²
Gripper margin:10 mm4.
Chase Sizes– 915 x 1,300 mm chase without bar– 840 x 1,300 mm chase with bar5.
Pile Heights (Non-Stop Operation)
Feeder pile height:Max. 1,500 mm with pallet
Delivery pile height:Max. 1,400 mm with pallet
Maximum pallet size:900 x 1,300 mm6.

Equipment and Features :
Suitable for carton and paper processing
Not suitable for corrugated board
Stripping possible using stripping frame and separation grid
EMS side lay system for alignment according to printed marks
