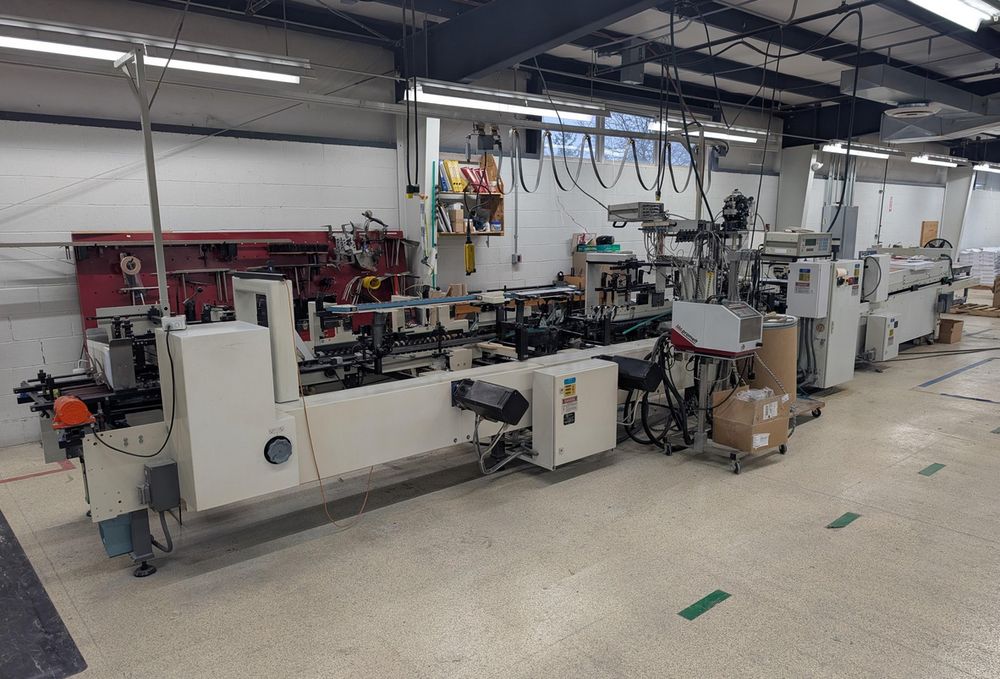

Bobst Media 100 II

Folder / Gluer System
Features:
Automatic Folder / Gluer For Folding Carton Production
Capable Of Straight-Line, Crash-Lock Bottom, And 4 & 6 Corner Cartons
Vibratory Feeder With Pre-Fold Section
Servo-Driven Folding And Transport Components
Electronic Hot Melt Glue System With Multiple Glue Guns
Compression Conveyor Delivery Section
Designed For Solid Board And Light Corrugated Materials

Specifications:
Maximum Blank Width: 39.4″ (1000 mm)
Minimum Blank Width: 2.2″ (56 mm)
Maximum Blank Length: 23.6″ (600 mm)
Minimum Blank Length: 2.4″ (60 mm)
Material Range: 100 – 600 gsm Solid Board
Corrugated Capability: Up To E-Flute
Maximum Operating Speed: Up To 300 m/min (≈985 ft/min)
Maximum Carton Thickness: 8 mm
