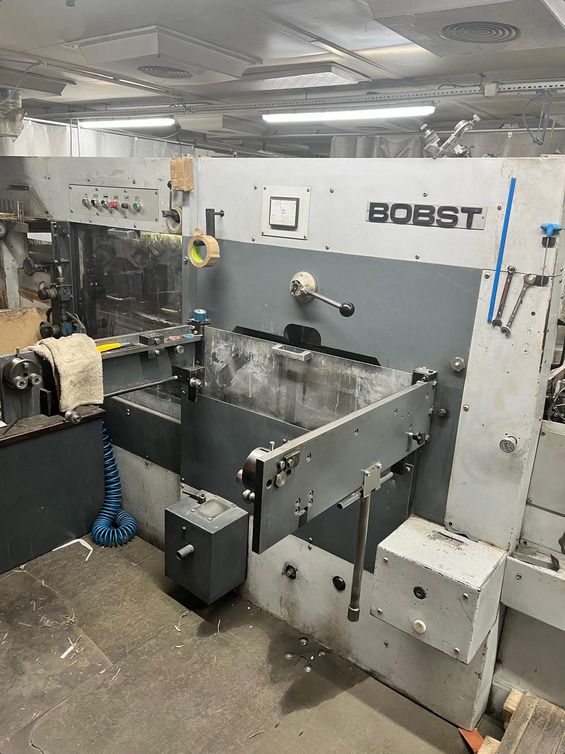

Bobst SP 102-BMA

* overhauled in 2009
FEEDER
Universal non-stop feeder
In line pile preparation
Suction unit with multiple adjustments

FEED TABLE
4 Front lays, adjustable in pairs with front register control
Pull guide (OS) Transport belts

PLATEN
Heated upper head with 16 independent heating zones
Steel stamping supporting plate
Thickness: 21.5 mm2 x Honeycomb chase (E-6) for 6,35 or 7 mm dies
2 x Stamping plate, BM (E-62)
Thickness: 2,3 mm
Compensating plate, BM (E-52)
Thickness: 3,0 mm
Lateral guiding device for foil
Motorized foil tension shaft control with air cooling
Automatic "on and off' pressure device of the platen
Blower for stabilizing the sheet before stamping or converting
Blower for releasing the foil after stampingDevice for manual introduction of foil
Lateral foil removal system, combined with rotating brushes, with speed modulation in function with foil advance
Device for lengthwise slitting of foilFoil break control system for 16 foils
Removable foil supply module comprising
3 x individual motor-driven advance regulating shafts
2 x telescopic sliding rails for reel-holders
2 x reel-holder axles
2 x additional reel-holder used for off-machine preparation
3 x sets of 8 reel-holder levers with combinable I" and 3" hubs

Including:
1 set for narrow reels, 1 set for mid-sized reels, 1 set for large reel
15 narrow drive rollers, width 14 mm
15 wide drive rollers, width 38 mm1 movable stand (OOS) for the installation or removal of the BMA device.

DELIVERY
Pile tray
Adjustable rear and side jogger. Manual non-stop rack
Options added:Die cutting chase E-1
Compensating plate E-3
Micrometric adjusting plate E-55
Set of thin cutting plates E-98 Compatible with SP 102 Evoline

Technical data:
CONVERTIBLE STOCK
Minimum paper range: 80 - 90 g/sqm
Maximum cardboard range: 2000 g/sqm
Maximum corrugated board thickness: 4 mm

PILE HEIGHT
Maximum height feeder(normal mode): 1820 mm
Maximum height feeder(with pile preparation device): 1710 mm
Maximum height Feeder(non-stop): 1660 mm
Maximum height Feeder(with pile preparation device non-stop): 1550 mm
Maximum height Delivery: 1460 mm
Gripper margin: 9 - 17 mm
Height of embossing dies: 6,35 / 7 mm
Height of cutting rules: 23,8 mm

PLATEN TEMPERATURE
Adjustable temperature: 50 - 160 °C
16 x adjustable temperature zones

FOIL SUPPLY MODULE
Maximum reel diameter: 250 mm
Foil web width: 25- 1010 mm
3 x advance shafts
Maximum programmable advance: 720 mm
