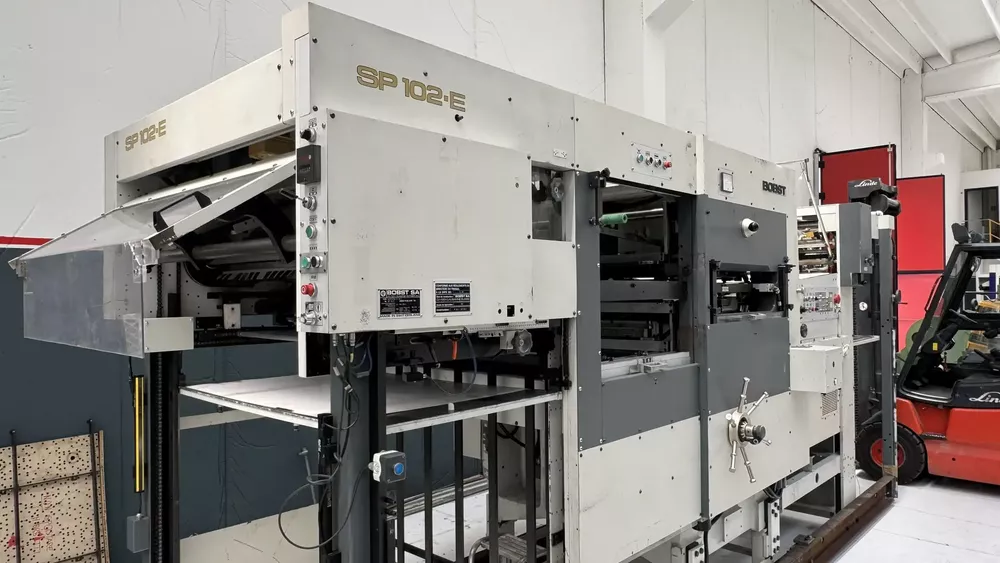

Bobst SP 102 E

Max sheet size 720 x 1020
Min sheet size 400 x 350 (350 x 300)
Centerline
Raised machine

Feeder
Standard Feeder with all its equipment
Non-stop device on feeder
Pile height at feeder : With non-stop system (max. 1100 mm.) - Without non-stop system (max. 1.400 mm.)

Platin
Diecutting chase (fixed bottom plate)
Normal die cutting plate 4 mm

Stripping Station
1 die-cutting upper stripping frame
1 lower stripping frame with all its standard equipment
Compete with aluminium bars, needles supports and needles

Various
Cutting force 250 TON
Board quality processable : carta (min. 80g/m²); cartone (250/2000 g/m²); corrugato "E" e "B" (max 4 mm.)
Cutting size : with front trim ( max. 705 x 1020 mm.); without front trim (max. 720 x 1020 mm.)
7.500 speed/h (depending on cardboard and type of iob feature)
All books, electrical scheme, manual instruction books, spare parts books and standard tools
Adjustable grippers 8-17 mm
Introduction table: Pull lay operator side
