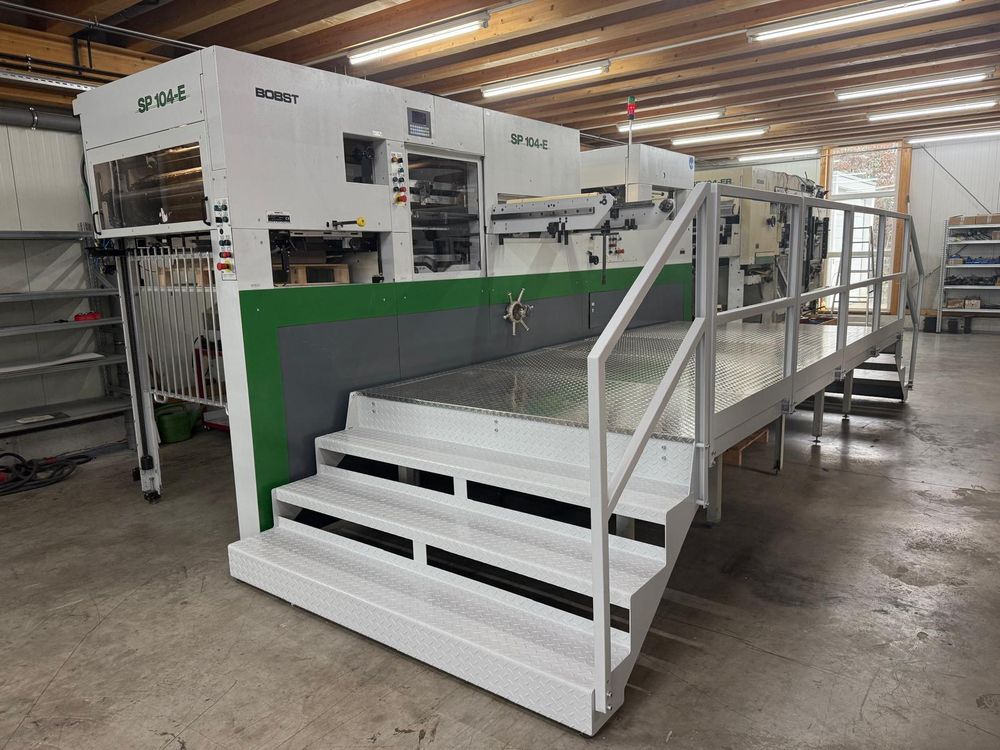

Bobst SP 104-E

Sheet size max: 1040x740 mm
Sheet size min.: 400x350 mm
Gripper margin: 1.040+740 mm
Platen pressure max.: 250 t
Production speed: 8500 cycles/h.
Mechanical speed: 8500 sheets/h.
Centerline, pull mark left, push mark right, gripper edge separation, 41cm elevated
Bobst-Cube control, micrometer adjustment, electric double sheet control1 upper die cutting frame
1 die cutting plate 4 mm
1 upper stripping frame
1 lower stripping frame
Max. machine speed 7000 sheets/hour
Max. pressure 250 tons
Processable materials: paper min. 80g/m²
Cardboard up to max. 2000g/m²
Corrugated cardboard up to 4mm
Stripping station
Non-stop in feeder + delivery
Repainted
