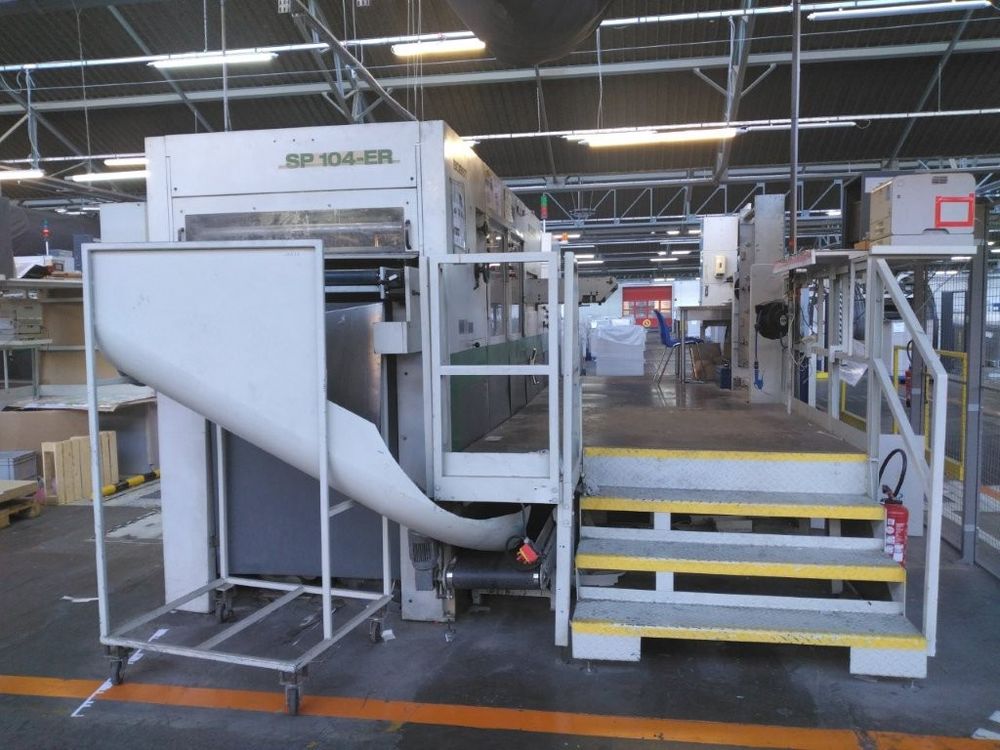

Bobst SP 104-ER

Working Hours 64000
Speed 8000 sheets/h
Max. Size 1039 x 740 mm
Min. Size 399 x 350 mm
Condition Good

Feeder & Infeed:
Non-stop (manual/automatic): Manual
Non-stop infeed bars (mm): 18
Non-stop bars coating (Chrome/Teflon/Standard): Standard
Non-stop bars equipped with air pressure (Y/N): No
Non-stop bars with lateral shifting (Y/N): Yes
Lateral register available (Y/N): No
Register type (POWER/ACCU/LATERAL/MECHANICAL): n/a
Register mark width (1 mm): n/a
Reading from (Top/Bottom/Both): n/a
Front margin – standard/light sensor: Yes
Mechanical front margin (25, 60, n/a): 25
Upper transport belts on infeed (corrugated): No
Detection sheet direction (Camera/Code-reader/Photocell): n/a

Platen Press:
Chase changer: Yes
Supplier: Perivo
Micrometric adjustment on counter plate (Y/N): Yes
Micrometric adjustment on counter plate (mechanical/electrical): Mechanical
Sandwich plate: Yes
Supplier: Perivo
Quick lock upper chase platen: Yes

Stripping :
Bernoulli: Yes
Bernoulli pump (central/machine): Machine
Bernoulli air supply volume (m³/hour): 230
Quick lock upper stripping: Yes
Quick lock frame suitable for spider pushers (Y/N): Yes
Supplier: Perivo
Quick lock lower stripping: Yes
Supplier: Perivo

Blanking Section:
Bernoulli: Yes
Bernoulli pump (central/machine): Machine
Bernoulli air supply volume (m³/hour): 230
Quick lock upper blanking: Yes
Quick lock frame suitable for spider pushers (Y/N): Yes
Supplier: Perivo
Waste evacuation – full machine width for waste grids: Yes
Supplier: n/a
Standard blanking jogger used (86 mm): Yes
Type quick set delivery bars (Standard/Quickset/Flexrack): Standard
Supplier quick set delivery bars: n/a
Automatic non-stop grid with variable height (Y/N): No
