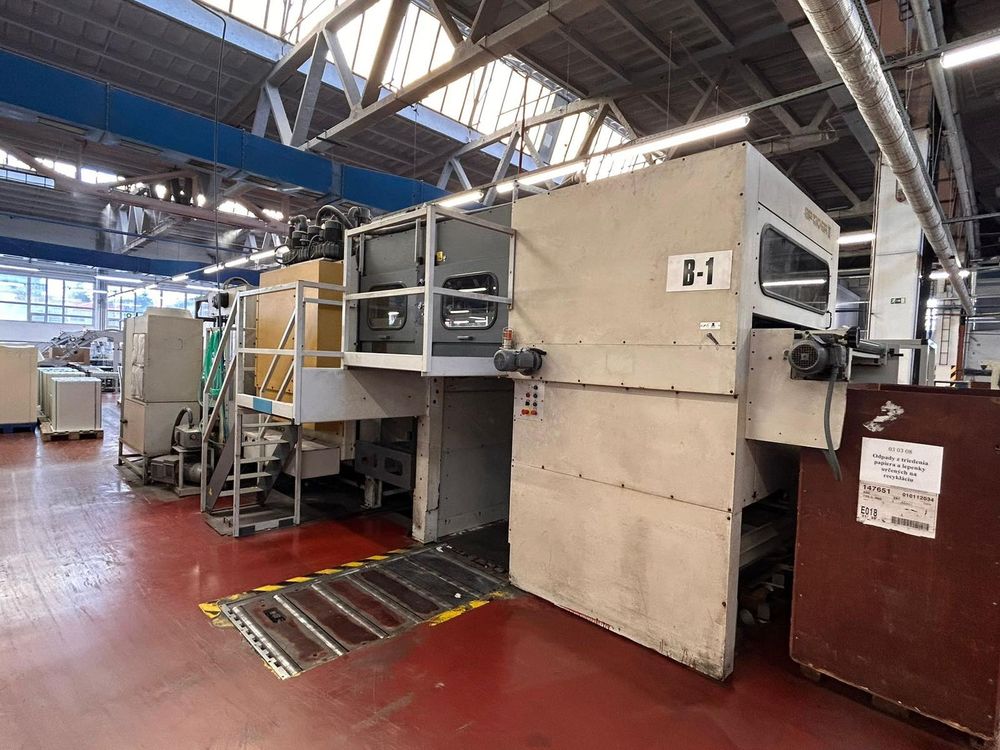

Bobst SP 130 ER II

Power input: 55 kW
Machine documentation, includes: Catalog ND, electrical diagrams, assembly. manual, operating instructions, lubrication schedule...

Loader and loading machine
• Motorized suction head Yes
• Non-stop No
• Lateral correction, stack position adjustment Yes
• Lateral wiring from the service side Yes
• Lateral line from the opposite side Non-functional
• Upper belts on loading table Yes
• Device for slowing down archives before alignment Yes
• Device for synchronization of archives Yes

Cutting
• Four groove resections Yes
• Adjustment for 1mm cut sheets Yes
• Compensation plate for the use of 1mm sheets Yes (spacer plate 1pc)
• Three cutting plates (5mm, 4mm, 3.5mm) Yes (but only 4mm thick plate)

Stripping
• Upper stripping frames Yes (2 pcs)
• Lower stripping frames Yes (2 pcs)
• Central pull-out frame for stripping Yes (stripping board frame)
•
Blanking
• Upper blanking frames Yes (2 pcs)
• Lower blanking frames Yes (2 pcs)

Interpreter
• Folding non-stop bars for smooth stack exit Yes (retractable forks)
• Trolleys for moving the handler devices Yes (2 pcs.)
• Carts for storing cutting tools and frames Yes (2 pcs.)
