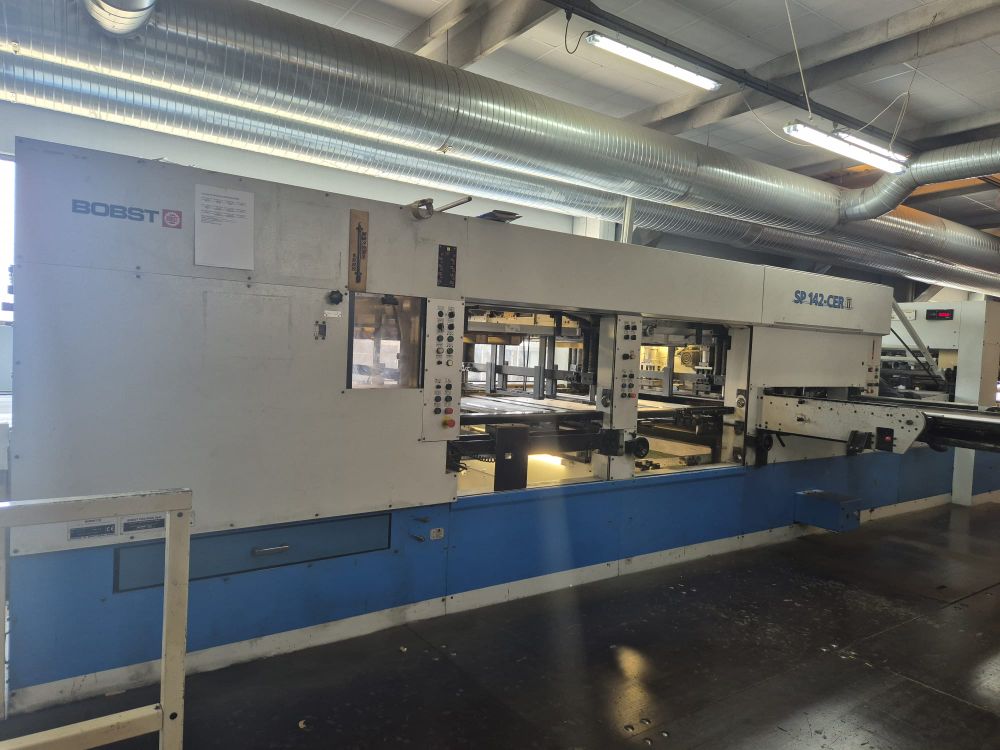

Bobst SP 142 CER II

Max sheet size 1020 x 1420
Machine
Walkway Extra Large
Platform with safety bar
Centerline system for quick job changeover
Electronic device for sheet travel control
Gripper bars
Bobst-Electronic system for managing the machine
Main motor with frequency converter control
E-58 PERFORATED COMPENSATION PLATE, ground steel, allows a permanent vacuum contact between the support plate,
the compensation sheet and the thin sheet. Thickness 4 mm. The thin laminations are held in place by screws and a vacuum system that engages ..

Feeder
Manual Non-Stop device
Automatic lateral pile adjusting using non-contact probes (with photocells)
Side blowers adjustable with Centerline marks
Suction unit
Synchronization device timing the sheet arrival against the front lays when the machine is at a standstill
Feed table with pre-register device that ensures smooth arrival of the sheets to the front teams
Control of the height of the pile on the front edge thanks to a photoelectric cell, with interlocking of the suction unit position according to the top and rear part of the pile
Safety system for lowering the pile tray

Introduction table
Sheet synchronizer for adjustable running which allows you to adapt the cycle of the feeder to that of the platen with LED indicator
Laterally guided transport belts with automatic disengagement
Feed table covered with an anti-static stainless steel plate
Feed table with laterally guided transport belts with automatic disengagement

Platin
Die-cutting device without gripper band
Oil conditioning unit for die cutting stability. Machine oil temperature maintenance system with temperature display. Programmable preheating system
Centering and closing the die-cutting equipment
Automatic closing of the frame and support plate
Closing of the frame towards the upper block
Measurement of the die-cutting force using an electronic probe
Support plate in synthetic material. For the vacuum system
Motorized cutting force adjustment Via button
Braking device via "Bernoulli" system
2 Upper frames with fixed bottom (E-1). Bottom sheet, 2 mm thick and synthetic protection plate, 1 mm thick
2 Cutting plates (E-4)
Gripper reopening device
Frame Turner in the Platin
1 E-55 ADJUSTABLE SUPPORTING PLATE CENTERINGS.

Stripping Station
3 drawer frame system
Braking device via "Bernoulli" system
1 Upper drawer frame (F-2)
Upper extraction equipment (F-21). Equipment needed to make an extraction tool, including bars, fixing brackets, extractor holders and sets of extractors of 3, 5 and 10 mm diameter
Fixing material for extraction tool (F-22). Including fixing bars and brackets
1 Central drawer frame
1 Extraction table fastening material (F-75)
1 Lower drawer frame (F-8)
1 Lower Extraction Equipment (F-81). Trim extraction equipment, including rods and telescopic needles
1 F-4 TOP DRAWER FRAME WITH PERFORATED PLATE AND FIXING MATERIAL. The perforated plate allows the attachment of an extraction tool
Blanking Station
Automatic sheet insertion device
Drawer sheet device with electrical control of the presence of the sheet in the drawer
Clamp opening device that allows the sheets to arrive in the stack
Automatic pallet change device. With photoelectric cell safety barrier (non-conductor side)
Automatic Non-Stop Device
Non-stop bars in high and low positions
Stack raising safety device
Belt for evacuation of trimmings or residual grid located at the end of the machine. It also allows the removal of a sheet with non-separated poses, for quality control
Residual grid braking brush
Braking device via "Bernoulli" system
1 Upper drawer frame (H-21)
1 Universal upper tool (H-25). Equipment necessary for the creation of a pose separation tool
1 Fixing material of a separating tool (H-26). For fixing the upper separation tools of fabricated poses. Recommended for repetitive work.
1 bottom drawer frame with fastening material (H-5). Allows you to attach a lower separation tool to manufactured poses
1 Adjustable lower tool (H-6). Adjustable tool includes: - universal frame (H-61) - material that allows you to assemble the separation grid

Peripherals
Control cabinet cooling unit
