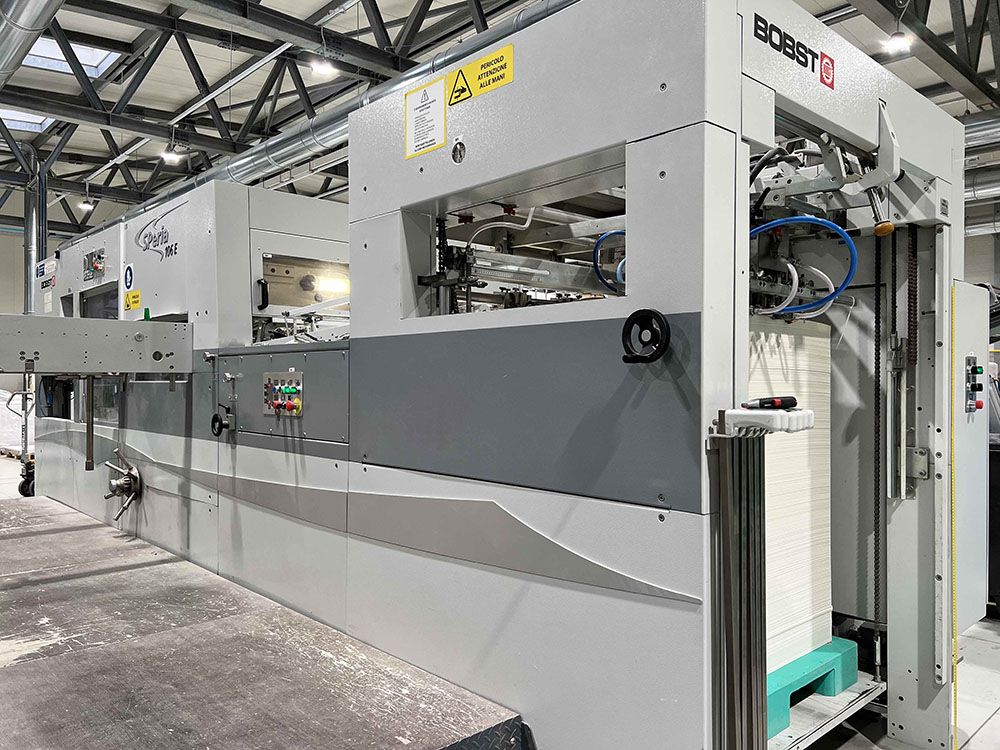

Bobst SPERIA 106E

Machine:
B-28 INSTALLATION OF THE MACHINE WITHOUT EXCAVATION
B-7 PLATFORM
Macchina compatible with HIGHWAY TDF VIEW System
Centerline system for quick job changeover
Electronic device for sheet travel control
Adjustable centering on delivery
Control cabinet cooling unit
C.U.B.E. (Control Unit Bobst Electronic) for machine operation
Main motor with frequency variator

Feeder:
Pile tray with handle allowing manual lateral correction on the pile during production
Synchronization device timing the sheet arrival against the front lays when the machine is at a standstill
Pile lifting controlled by Pressfoot
Rear pile guide (OS and OOS sides)
Side blowers adjustable with Centerline marks
Suction unit
Safety system for lowering the pile try
C-4 NON-STOP FEEDER MANUAL DEVICE

Platin:
Grippers re-opening device (Platin)
Equipment centering and locking on platin
Synthetic material supporting plate on platen (Thickness 23.5 mm (0,925")
E-5 COMPENSATING PLATE. THICKNESS 4 MM. IN GROUND STEEL
E-55 ADJUSTABLE SUPPORTING PLATE CENTERINGS
1 Upper chase-fixed bottom (E-1)
1 Cutting plate (E-4)

Stripping Station:
Quick locking device of the central stripping board
Motorized lifting of the upper frame
1 Upper Stripping Frame (F-2)
1 Upper stripping equipment (F-21) required to create a waste stripping tool, including crossbars, clamps, stripper holders and stripping pins of 3, 5 and 10 mm of diameter
Fastening equipment for stripping die (F-22)
1 Adaption material for stripping board on the central frame (quick locking) (F-76)
1 lower pull-out frame (F-8)
1 Lower stripping equipment (F-81) Equipment for waste stripping including crossbars, pins and supports
F-31 UPPER PULL-OUT FRAME QUICK LOCK DEVICE FOR STRIPPING ((decreases extraction tool assembly times. the quick-closing device allows the tool to be changed in the machine)
F-35 FASTENING EQUIPMENT FOR UPPER PULL-OUT FRAME QUICK LOCK DEVICE FOR STRIPPING
(TO FIX STRIPPING TOOL TO THE UPPER PULL-OUT FRAME QUICK LOCK)
CENTRAL PULL-OUT FRAME QUICK LOCK ON STRIPPING UNIT WITH ALL ITS TOOLS

Various:
The Autoplaten Presses SP 106-E are in conformity with the European Directives for the Safety
and Health requirements related to its design and construction, sa well American standards UL 508
and NFPA related to industrial equipment

Introduction table:
Covered with an anti-static stainless steel plate
Transport belts (with lateral guidance and automatic tensionning system)
4 front lays, adjustable in pairs with front register control
"Pull" guide (OS) adjustable according to Centerline marks, with side register control
Double sheet detector. Mechanical, integrated on pull guide (OS)
Sheet-hold down device (guiding the sheets to front lays)
Upper transport equipment for paper, paperboard and corrugated board
C-5 SYNCHRONIZATION DEVICE TIMING THE SHEET ARRIVAL AGAINST THE FRONT LAYS WHEN THE MACHINE IS AT A STANDSTILL
D-1 PULL GUIDE (OOS)
