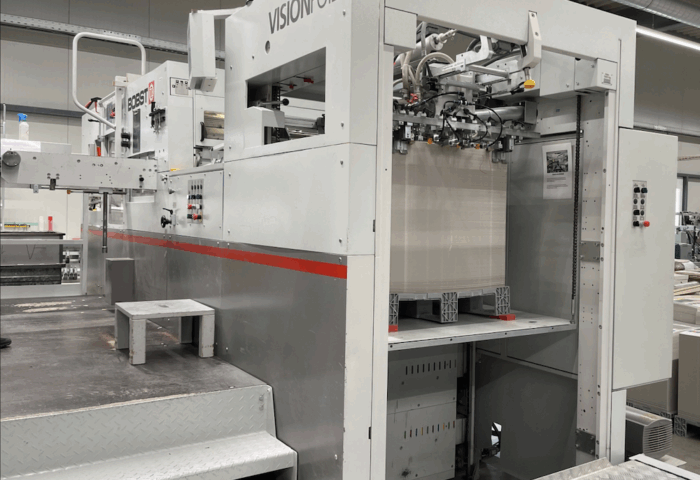

Bobst Visionfoil 104

Ref : 2727414-4-MT
Condition : Used
Manufacturer : Bobst
Model : Visionfoil 104
Year(s) : 2012
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Specifications:
• 12,000 running hours
• Max sheet size: ............... 41” x 29”
• Min sheet size: ............... 15 ¾” x 13 ¾”
• Max Embossing Size: ...... 40” x 27 ½”

Processable materials:
• Paper 80 g/m2: ............... 0.004”
• Cardboard: .................... 0.040”
• Corrugated board 4 mm: 0.160”

Equipment:
• Control panel: C.U.B.E. II Control Unit Bobst Electronic
• Elevated machine
• Locking frame adapter
• Sheet Brake Device:
• MSS Console Machine Supervision System
• Set-up Table
• Device for processing paper at high speed
• Motorized vertical tracking of suction head
• Double sheet control
• Band rip control for 8 bands
• Press roller for tensioning shaft
• Press roller for feed roller
• Stripping Equipment
• Waste Stripping Station
• Unwinder module with 3 feed rollers
• 1-Cutting chase
• 1-Stripping frame• 1-Honeycomb base
• 1-Speed Chase for hot foil stamping
• Non-stop apron in delivery

Technical Details:
• Mechanical Speed: 7,500 sph
• Stamping pressure: 286 US Tons
• Programmable heating zones: 12
• Diameter of the rollers: 10”
• Width of the Foil Strips: 1” to 40”
