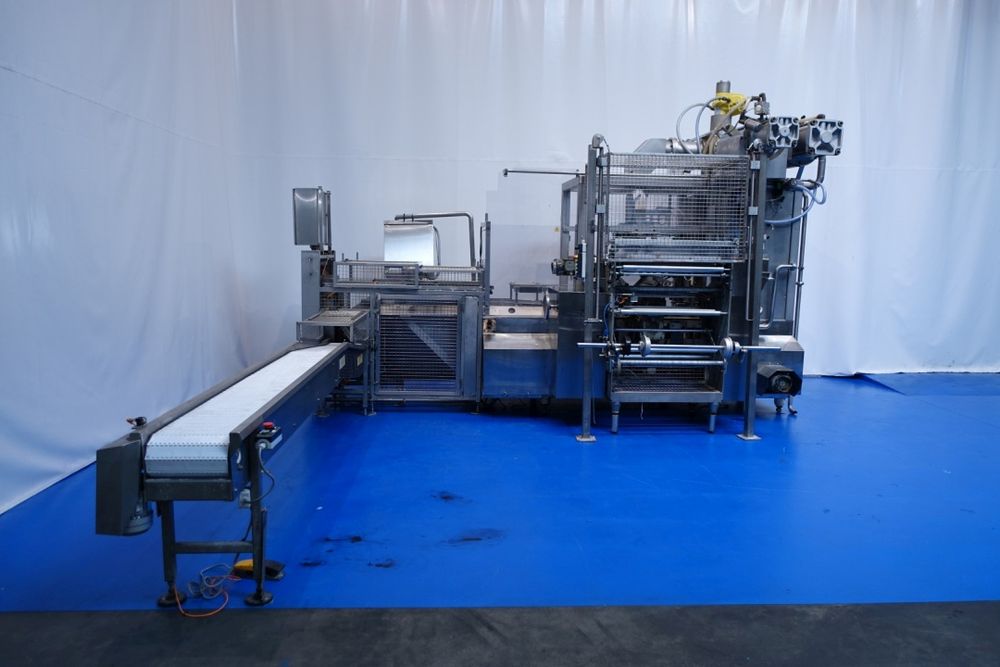

Bock & Sohn BPM 200

Capacity 900 pieces per hour
Full automatic sheet / Plate / Slab shapped pack
Butter Filling and wrapping machine.
Weight per pack 2kg each dimensions plate: 380x 285x 20mm,
(lxwxh) in Paper - Alu foil or parchment paper (special Backery butter).
Piston doser direct mounted on top of wrapper,
CIP cleanable with a CIP counter piece on outlet of doser mouth piece.
A compensator with contact to stop feed pump and CIP return pipe.
In the unit a hotwater set (electric heated
to make and circulate warm water through
the jacked filling mouth piece) is installed.
Photocell and print centring device on paper feed.
After the Filler a 'custom build',
automatic stacking unit, to stack 5 plates onto each other is made.
Outfeed conveyor length 368 cm - width ca. 30 cm.
Wrapper upgrade in 2000,
Control panel with PLC control,
Siemens Simatic S7-1200, last upgrade in 2021,
including the speed control of the feed pump by potentio meter.
CIP piping and a drain valve, + set of spare parts
with gaskets and roller bearings.
Total dimensions with outfeed conveyor: 490x480x310cm (lxwxh) -
Total weight: 3.908 kg, wrapper-doser only weight 3.640 kg.
