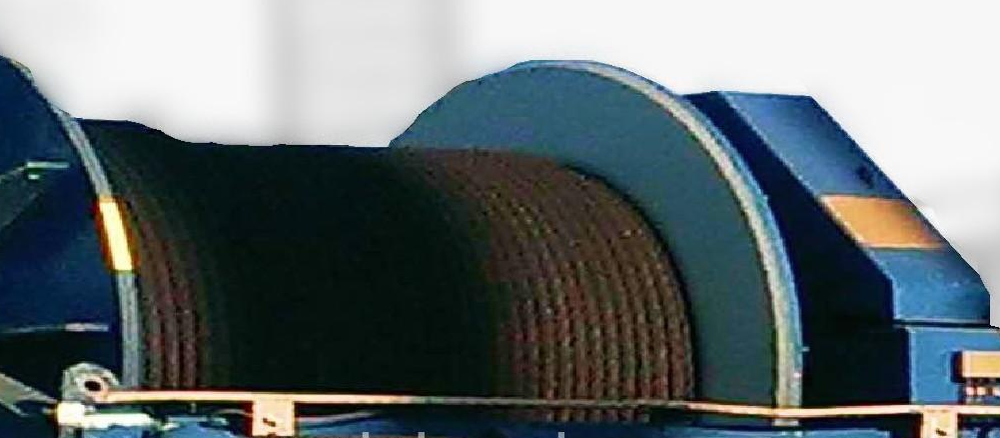

Bodewes 200Te A&R Winch Drum Diameter 2,000 mm

Ref : 2752126-10-MT

Condition : Used

Manufacturer : Bodewes

Model : 200Te A&R Winch

Short Description : Drum Diameter 2,000 mm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Wire Rope Diameter 92 mm
Number of Layers on Drum 11
Drum Storage Capacity 3,000 m
Wire Material Steel
Total Mass of Winch 105 kg
Gearbox Ratio 74.2995
Open Gear Ratio 7.3333
Spooler Spindle Pitch 40 mm
Power Requirements 460V AC 3ph, 60Hz, 7 x 110 kW
Nominal Line Pull 200 mT @ 20 m/min
Max Holding Capacity (Brakes) 300 mT @ 0 m/min
