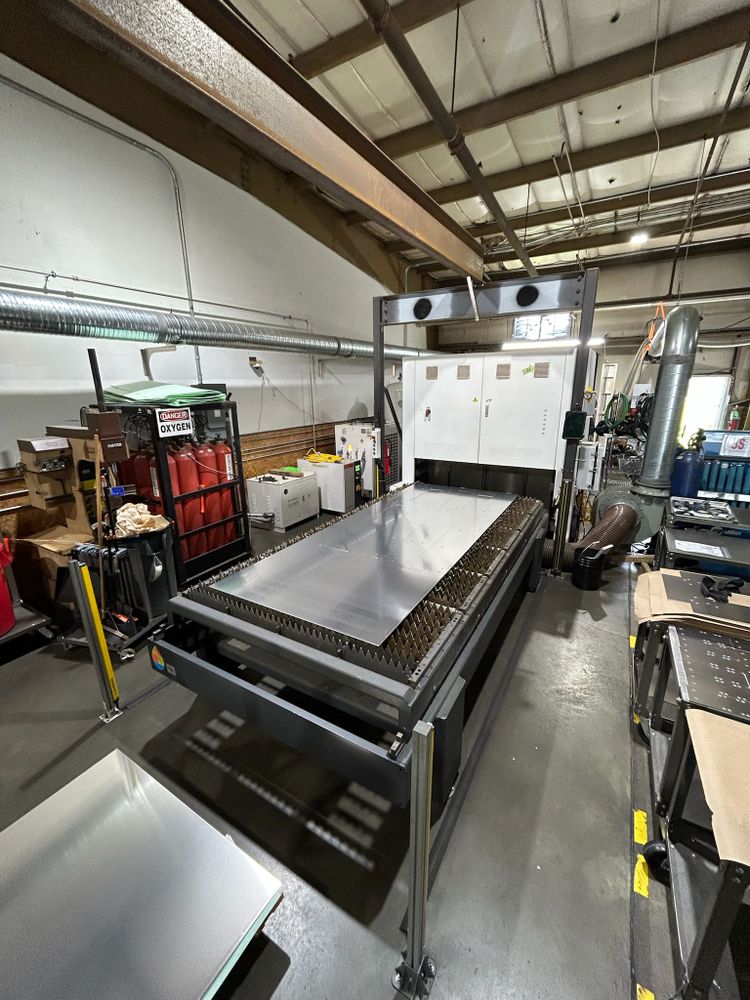

Bodor P3 Control System CNC (BODOR THINK)

Bodor P3
2023

Working Area 60″ x 120″
Sheet Width 60″
Sheet Length 120″
Z-axis Travel 12.4″
Max linkage speed 7874 ipm
Max Acceleration 4.0G
Positioning Accuracy ±0.05 mm / ±0.0011968″
Repositioning Accuracy ±0.02 mm / ±0.000787″

Maximum Sheet Thickness (Steel) 40 mm / 1.57″
Maximum Cutting Thickness Carbon Steel up to 40 mm / 1.57″
Maximum Cutting Thickness Stainless Steel up to 40 mm / 1.57″
Maximum Cutting Thickness Aluminum up to 30 mm / 1.18″
Maximum Cutting Thickness Brass up to 18 mm / 0.71″

Cutting Materials Carbon steel
Cutting Materials Stainless steel
Cutting Materials Aluminum
Cutting Materials Iron
Cutting Materials Brass
Cutting Materials Other metals

Max Load Capacity Per Table 2,403 lbs
5′ x 10′ shuttle table
12 kW Laser Resonator (419 run hours on laser unit)
Bodor Genius Auto focus laser head
Bodor Thinker 3.0 control system
Scan cutting function
Air Compressor
Light Curtain
cETLus Certification
Spare Laser Cutting Head
Three Years Warranty (One Year Free Service)

Dimensions approx. 391.2″ x 120″ x 90″
Weight 18,298.4 lbs
