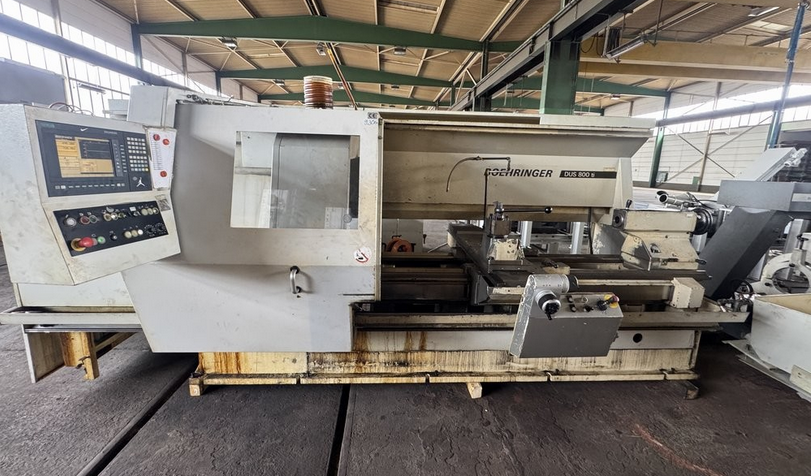

Boehringer Siemens Sinumerik 810D 1600 rpm DUS800 ti 2002 2 Axis

X Travel: 540 mm
Z Travel: 2100 mm
Feedrate X/Z Axis: 0.01–50 mm/min
Rapid Traverse X Axis: 5 m/min
Rapid Traverse Z Axis: 10 m/min
Control: Siemens Sinumerik 810D
Turning Diameter: 820 mm
Turning Length: 2000 mm
Center Height Over Square Guideway: 400 mm
Turning Diameter Over Slide Rest: 500 mm
Feeding Force Facing: 12500 N
Power Feed Longitudinal: 20000 N
Spindle Speed Range: 6.4–1600 rpm
Spindle Speed Gearbox Stage 1: 6.4–376 rpm
Spindle Speed Gearbox Stage 2: 27.4–1600 rpm
Power Capacity at 60% Load: 46 kW
Power Capacity at 100% Load: 37 kW
Max Torque at 60% Load: 5073 Nm
Max Torque at 100% Load: 4069 Nm
Constant Cutting Rate: 1–9999 m/min
Spindle Head: DIN 55027 Size 11
Spindle Diameter in Front Bearing: 170 mm
Spindle Bore: 128 mm
Tailstock Quill Taper: MT 6
Tailstock Quill Diameter: 125 mm
Tailstock Quill Stroke: 280 mm
Thread Pitch: 0.1–400 mm
Total Power Requirement: 35 kW
Machine Weight: 11000 kg
Machine Dimensions: 6.00 × 3.00 × 2.60 m

Chip Conveyor
Tailstock
Dust Exhauster
2 × Steady Rest
