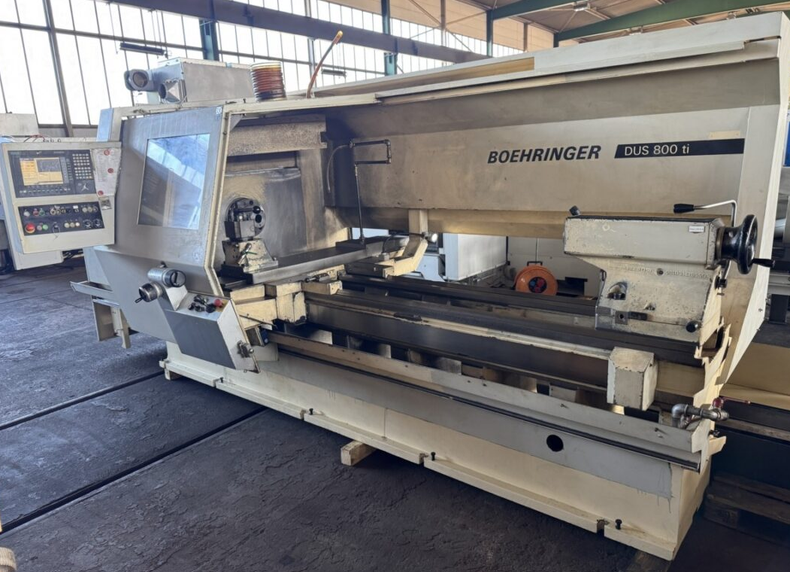

Boehringer SIN 810 D Control 1600 rpm DUS800 TI 2 Axis

Ref : 2803998-3-AW

Condition : Used

Manufacturer : Boehringer

Controller : SIN 810 D Control

Spindle Speed : 1600 rpm

Model : DUS800 TI

Nb Of Axis : 2 Axis

Year(s) : 2002

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: 540 mm
Z-Axis Travel: 2100 mm
Feed Rate X/Z: 0.01 - 50 mm/min
Rapid Traverse X-Axis: 5.00 m/min
Rapid Traverse Z-Axis: 10.00 m/min
Turning Diameter: 820 mm
Turning Diameter Over Slide: 500 mm
Turning Length: 2000 mm
Center Height Over Bed: 400 mm
Spindle Speed Range: 6.4 - 1600 rpm
Spindle Speed Range Gear 1: 6.40 - 376 rpm
Spindle Speed Range Gear 2: 27.40 - 1600 rpm
Spindle Power: 46 / 37 kW
Maximum Torque: 5073 / 4069 Nm
Constant Surface Speed: 1 - 9999 m/min
Spindle Head: DIN 55027 Size 11
Spindle Bearing Diameter: 170 mm
Facing Feed Force: 12500 N
Longitudinal Feed Force: 20000 N
Chip Conveyor
Tailstock
Dust Extractor
2 Steady Rests
