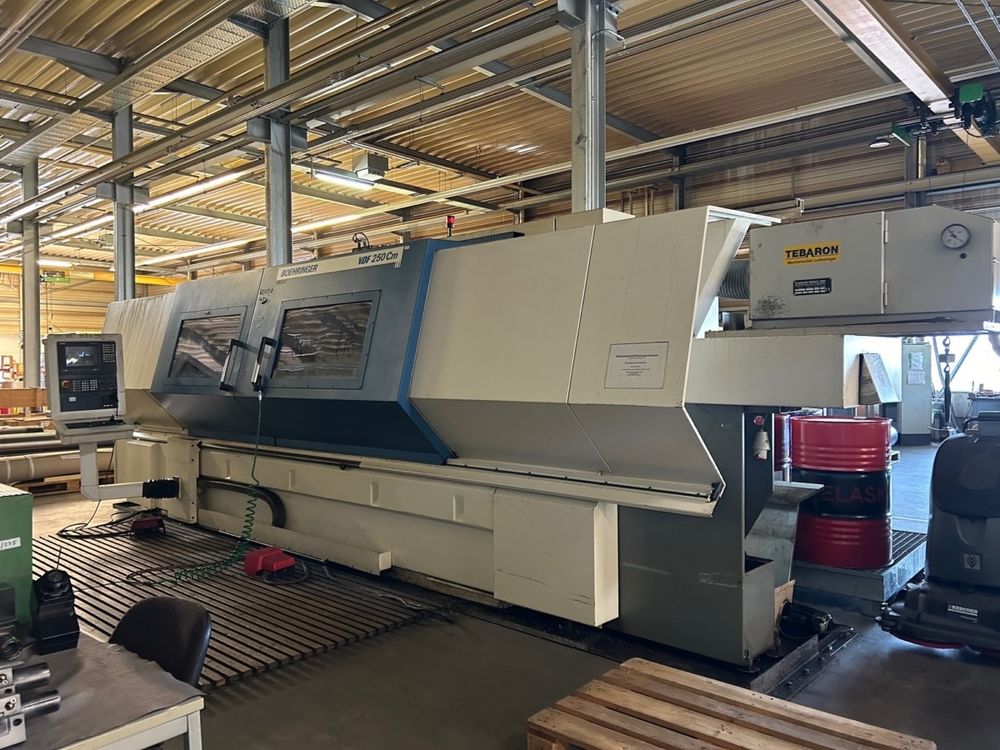

Boehringer, VDF SINUMERIK 840 D 3000 rpm 250 CM × 3000 2000 3 Axis

Ref : 2760353-3-AW

Condition : Used

Manufacturer : Boehringer, VDF

Controller : SINUMERIK 840 D

Spindle Speed : 3000 rpm

Model : 250 CM × 3000 2000

Nb Of Axis : 3 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 3000 mm
C-axis speed range: 0–20 rpm
C-axis max. angle specification: 9999.999°

Control: SINUMERIK 840 D
Controlled axes: 3
Tool carrier with 12 cylindrical shank holders Ø 50 mm
Clamping door for clamping devices
Chip conveyor

Rotation diameter over bed: 520 mm
Turning diameter over slide: 480 mm

Main drive power: 53 kW (50% ED)
Speed range: 30–3000 rpm
Main spindle head size: 8

Driven tool positions: 6
Driven tool power: 6 kW (60% ED)
Driven tool speed range: 20–2500 rpm
Gear stages: 2

Chuck: Power chuck 3 NHF 315-82 A8
Chuck outside diameter: 315 mm
Chuck bore: 82 mm
Max. bar capacity: 63 mm
Includes draw tube and attachment
