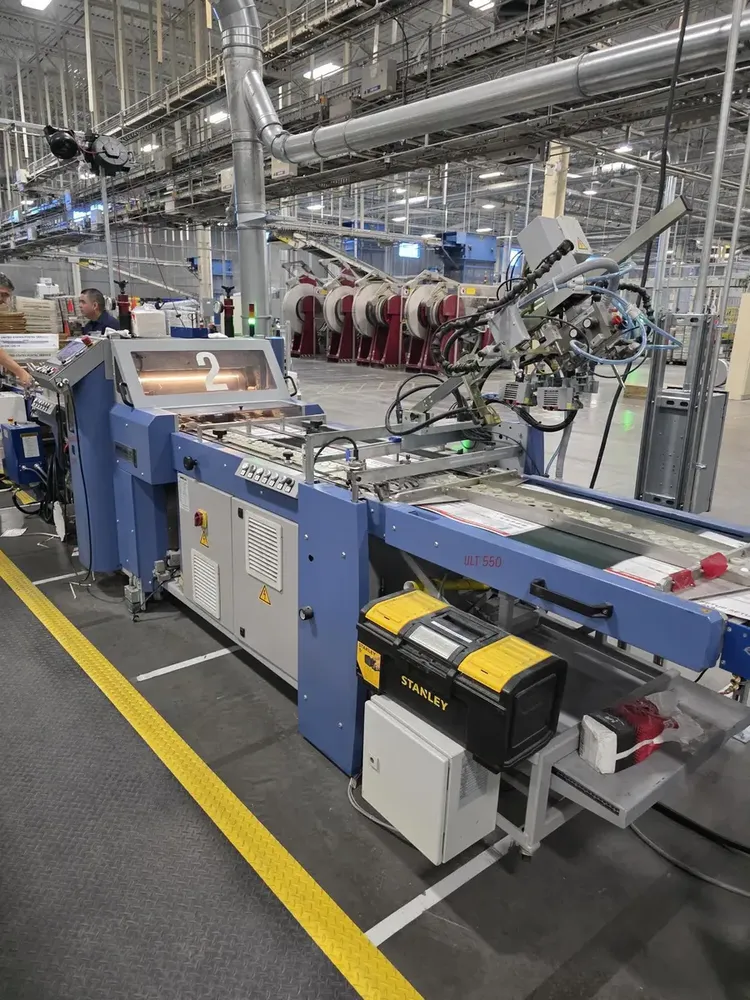

Bograma, Komori BSR 550

Used Die Cutter
Comes with entry transport tables and exit transport so can be ran roll to cutsheet.
Production rate max. 12'000 sheets/h, 165 m/min (depending on format and quality)
Feed vacuum belt and ball rail, length 1'500 mm
Sheet positioning 2 pairs of postion roller
Product rejection for sheets which are out of the register tolerance
Upper/lower tool admission magnetic cylinder for flexible dies
Punch cylinder circunference 813 mm / 32"
Clearance 1,2 mm / with counter plate 1,0 mm
Exit hight 940 mm
Working width max. 550 mm
Sheet size min. 297 x 210 mm, max. 550 x 750 mm
Die-cutting size min. 55 x 65 mm (option 42 x 63 mm), max. 530 x 730 mm
Product thickness min. approx. 80 g/m2, max. approx. 0,5 mm
