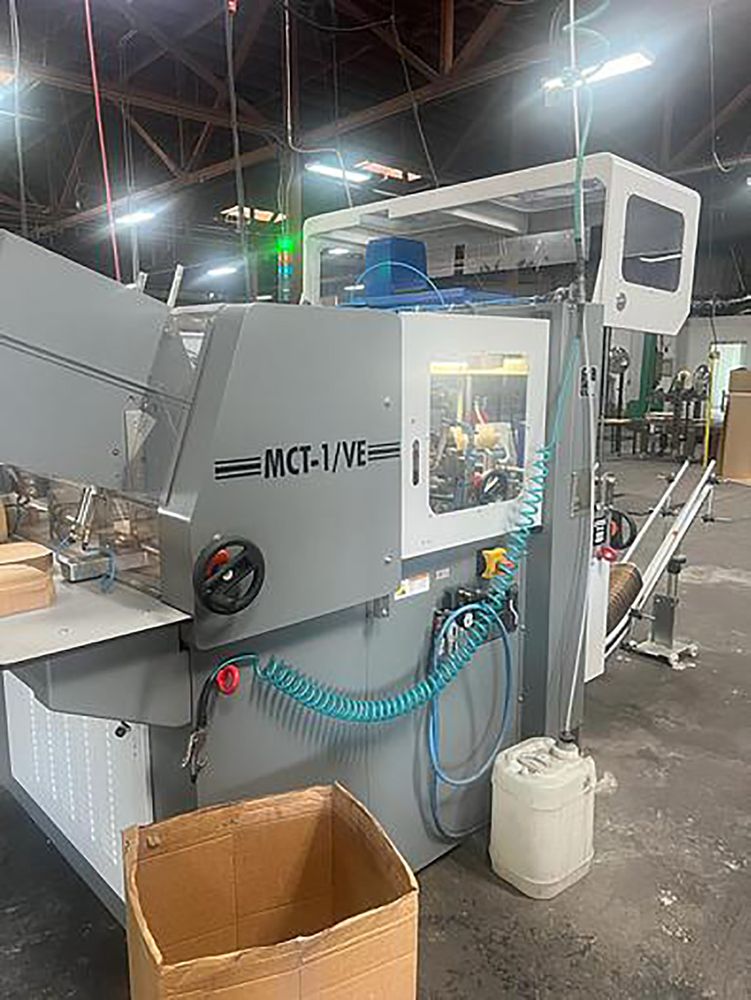

Boix MCT-1/VE Punnet

Tray Former
The machine runs small nested trays , punnet trays with a hot glue system it can run 4 or 8 corner ,
will run two up up to 17" x 17" at 6000 an hour

MCT-1/VE is a fully mechanical machine which runs on a single motor and allows to:
Regulate each head with different box dimensions.
Speed regulation by a frequency variator with automatic glue compensation.
It can form conical and / or standard boxes.
Possibility work in line kit; output of the machine under demand.

OPERATION: Mechanical, Electrical and Pneumatical
GLUE SYSTEM: Hot Melt, Glue Injection
BOX DESIGN: Small C-1 boxes or trays (punnets)
PRODUCTION: From 1550 Up to 3000 tph 6 speed per head
TOTAL POWER: 7 Kw
NET WEIGHT: 1,475 Kg
ELECTRICAL SUPPLY: 380/220 V (3F+N+PE) – 50/60 Hz
CHANGE OF SIZE: By clamps with threaded rods and counters
CHANGE OF SIZE (IN TIME): 15 min. Aprox.
CHANGE OF DESIGN (IN TIME): N.A.
WORKING AIR PRESSURE: 4,5 BAR (4,5 kg/cm2)
AIR CONSUMPTION: 540 Litres/ Minute
MACHINE FRAME: 10mm Steel plate
MACHINE DIMENSIONS: L:2385 mm.; A:1910 mm.; H:2220 mm
