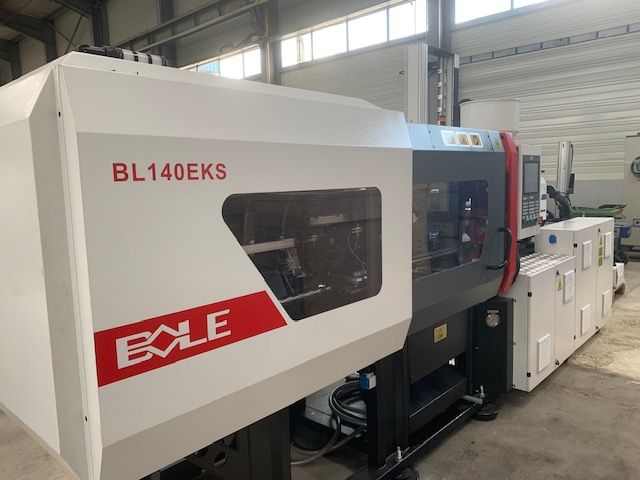

Bole BL 140T EKS – C460 Full Electric Injection Press 140 T

Injection Unit
Screw Diameter: 40 mm
Calculated Injection Volume: 251 cm3
Length/Diameter Ratio: 23 L/D
Maximum Injection Rate: 196 cm3/s
Number of Temperature Zones: 4 N

Clamping Unit
Clamping Force: 1400 kN
Opening Stroke: 420 mm
Minimum Mold Thickness: 180 mm
Maximum Distance Between Platens: 890 mm
Passage Between Columns: 460 x 410 mm

General
Oil Quantity: 180 L
Dimensions: 5.08 x 1.44 x 2.23 m
Weight: 4500 kg

Other
Equipment: Machine from a showroom KEBA controller Bimetallic
screw and nitrided barrel Hydraulic core sets
(on fixed and mobile plate) 4 x 380V sockets 2 x 220V sockets
6-zone water divider connector EUROMAP
67 robot interface EUROMAP 13 (electric core puller interface)
ETHERNET system
Commissioning: 2024
Tonnage: 140
