Boley MITSUBISHI Meldas 635LCC 8000 BE42

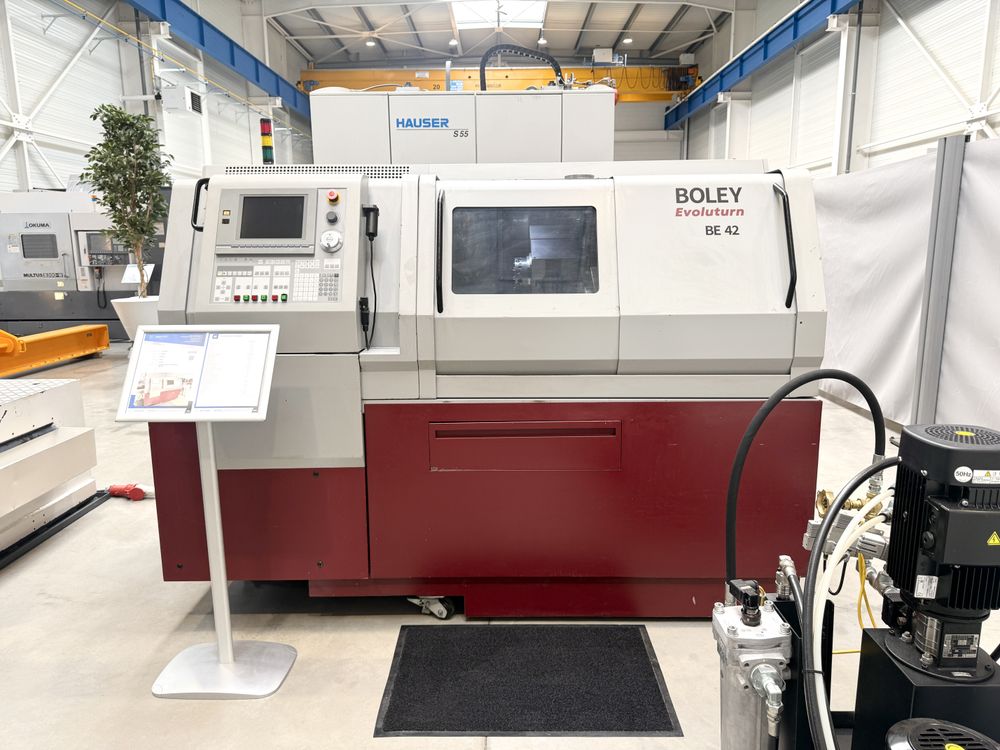

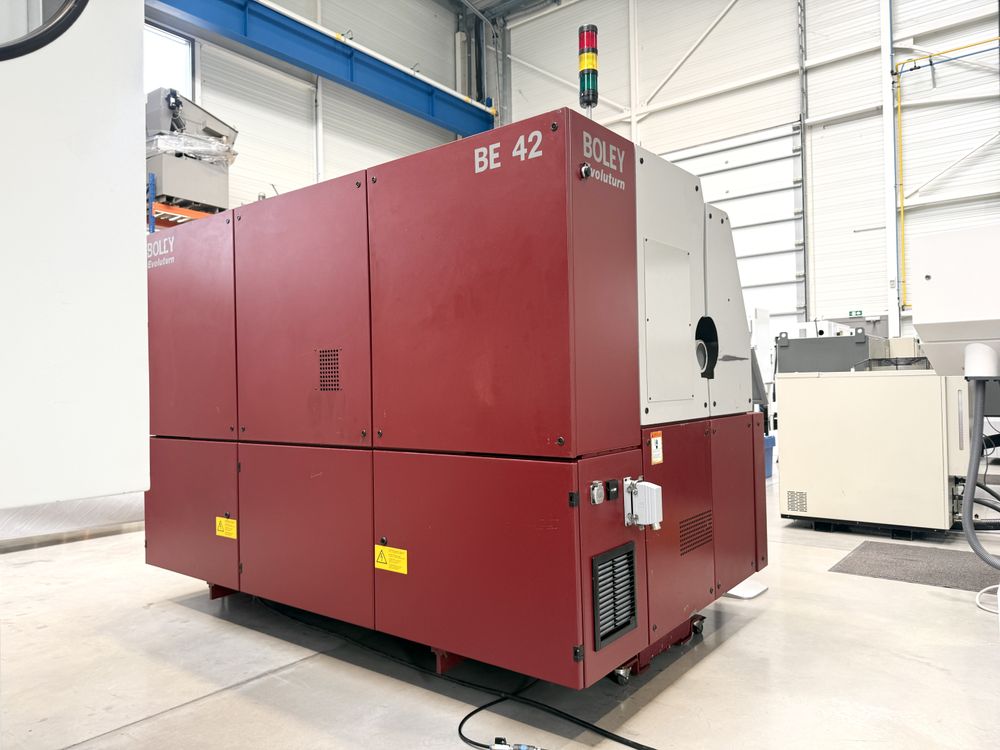

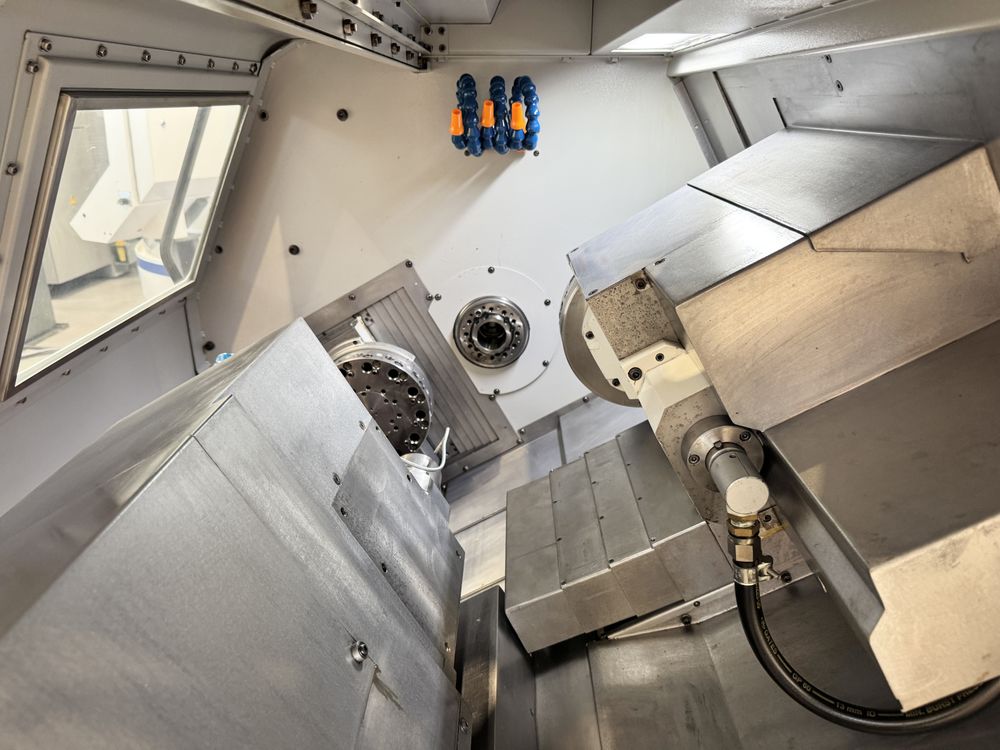

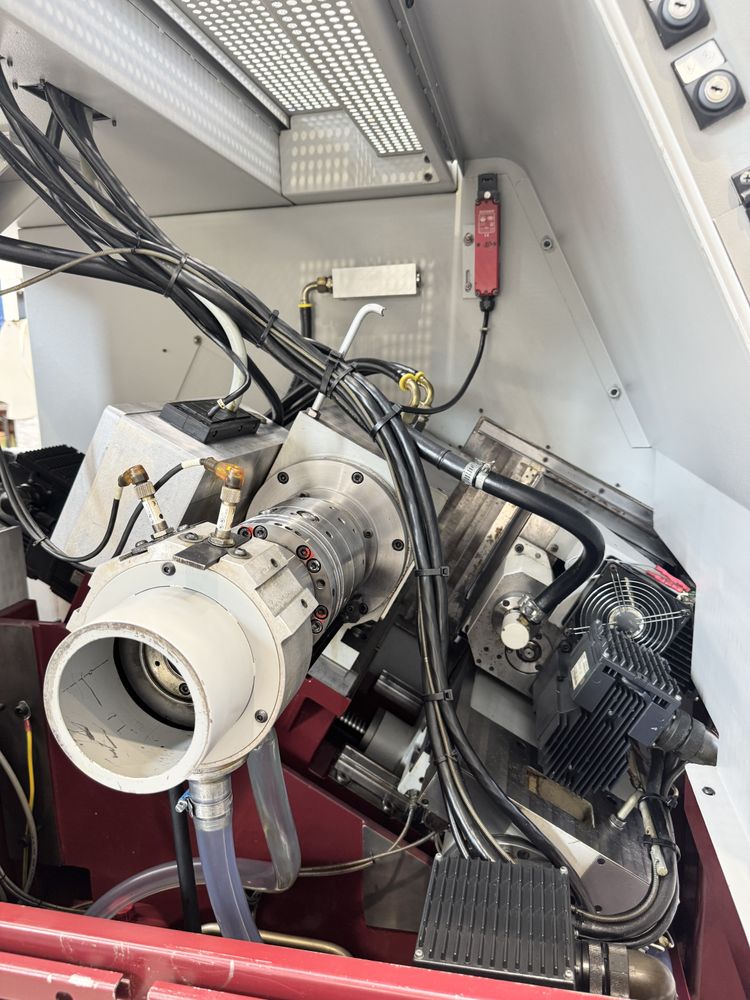

CNC Lathe BOLEY BE-42



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2002

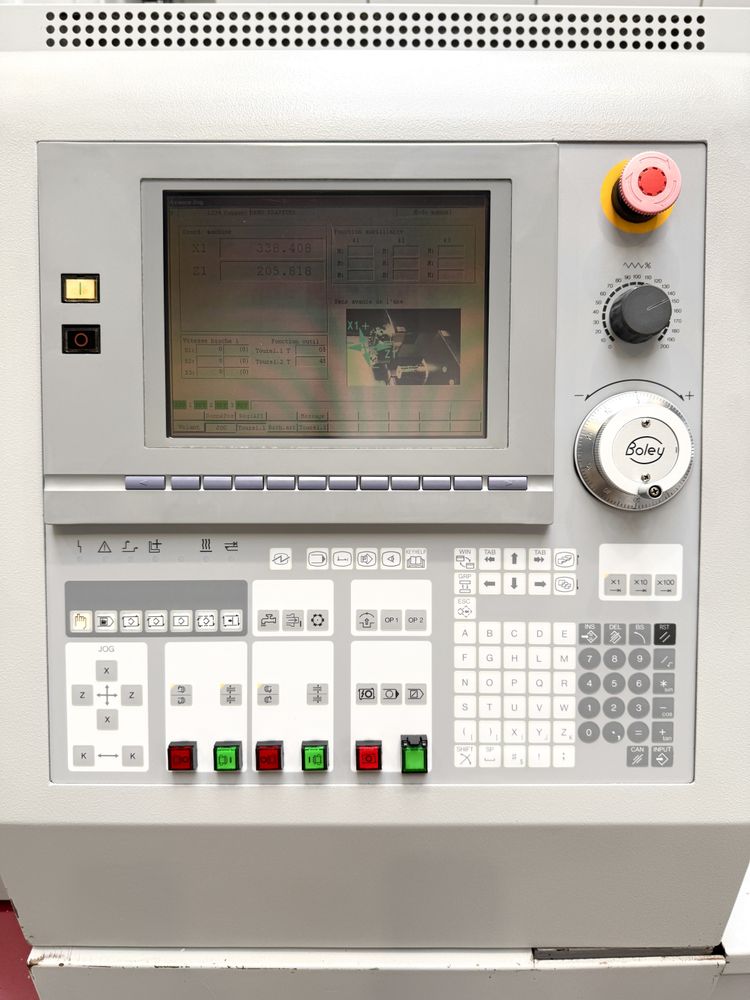

CNC control: MITSUBISHI Meldas 635LCC
Max. turning diameter: 140 [mm]
Stroke Z1 axis: 200 [mm]
Stroke X1 axis: 170 [mm]
Stroke Z2 axis: 395 [mm]
Stroke X2 axis: 110 [mm]
Stroke Z3 axis: 170 [mm]
Stroke X3 axis: 110 [mm]

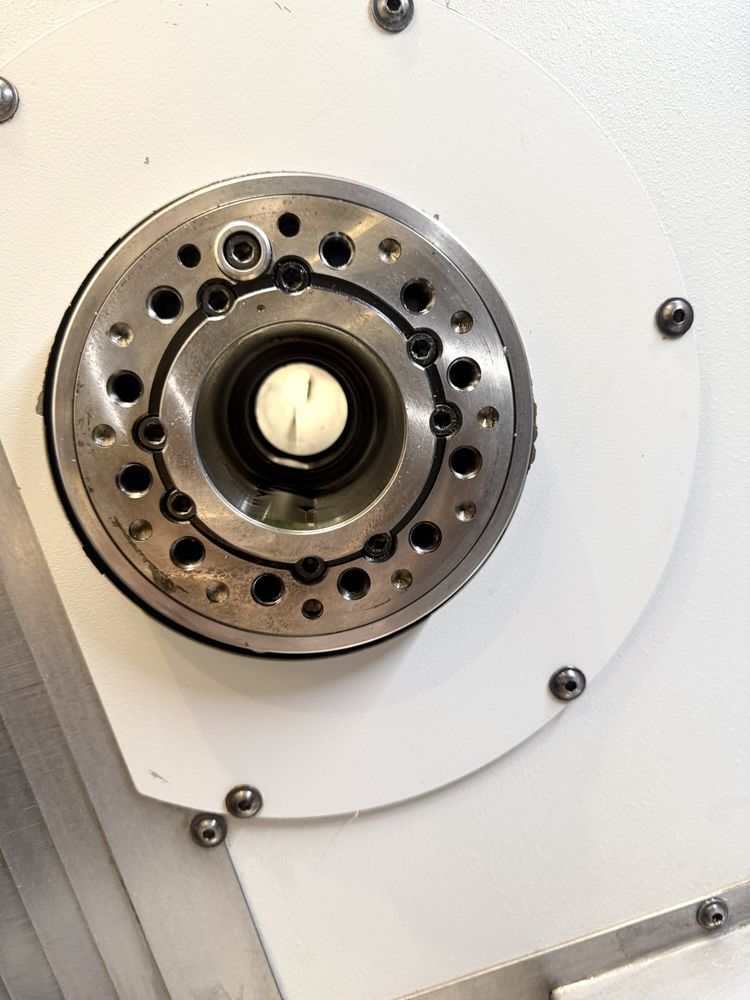

Spindle nose: 48 DIN 6343
Spindle throughbore: 42 [mm]
Min. spindle speed: 80 [rpm]
Max. spindle speed: 8000 [rpm]
Increment C-axis: 0.001 [°]
Spindle power: 7.5 [kW]

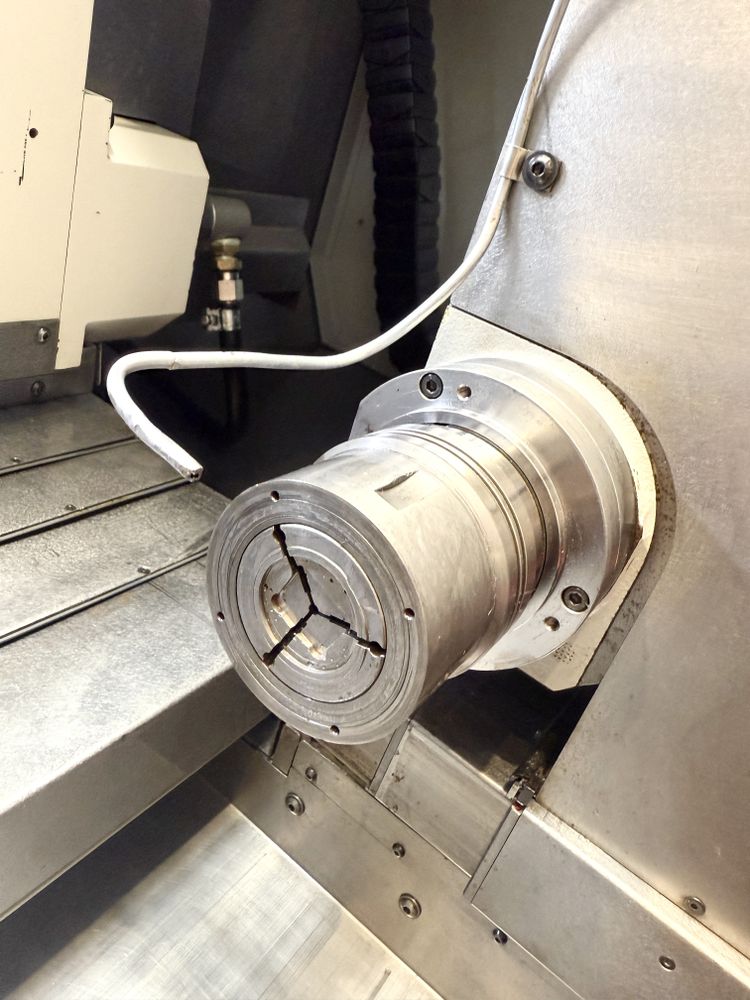

Counter spindle throughbore: 42 [mm]
Min. counter spindle spindle speed: 60 [rpm]
Max. counter spindle speed: 6000 [rpm]
Counter spindle increment C-axis: 0.001 [°]
Counter spindle power: 2.2 [kW]
Type of tool holders: VDI 20

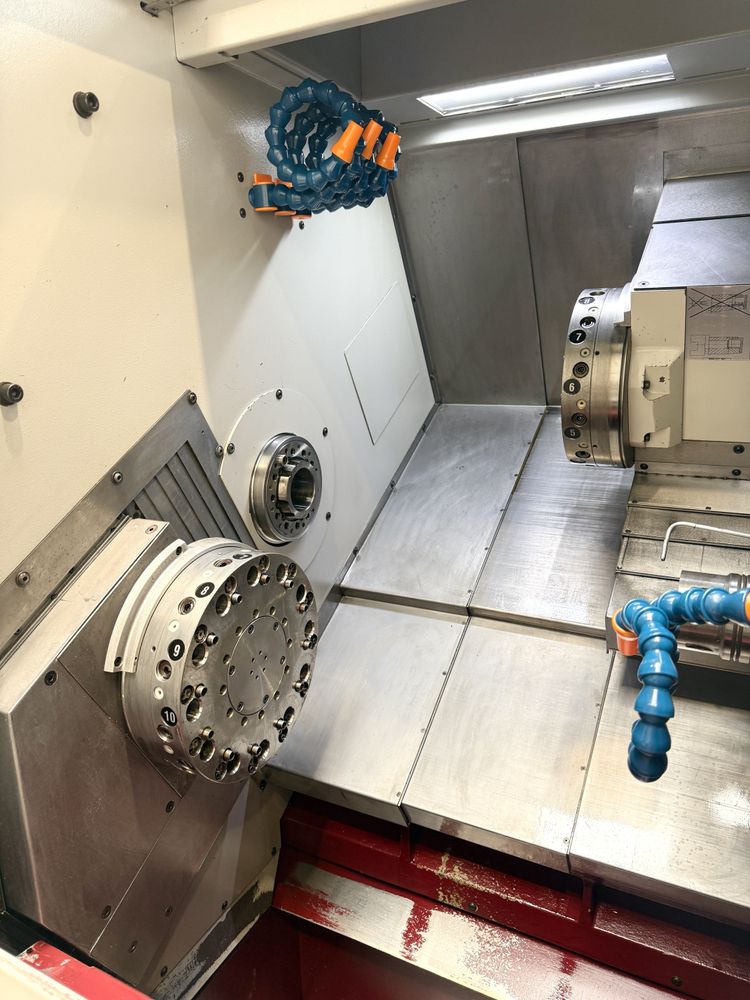

Number of tool stations - Turret 1: 12
Number of tool stations driven - Turret 1: 12
Max. speed driven tools - Turret 1: 4500 [rpm]
Number of tool stations - Turret 2: 12
Number of tool stations driven - Turret 2: 12
Max. speed driven tools - Turret 2: 4500 [rpm]
Lubrication tank capacity: 210 [l]
Total power required: 14 [kVA]
Rated current: 20 [A]
Supply voltage: 400 [V]
RS232 Interface: Yes
Dimensions: 2350 x 1590 x 1730 [mm]
Weight: 3300 [Kg]


INCLUDED EQUIPMENT:

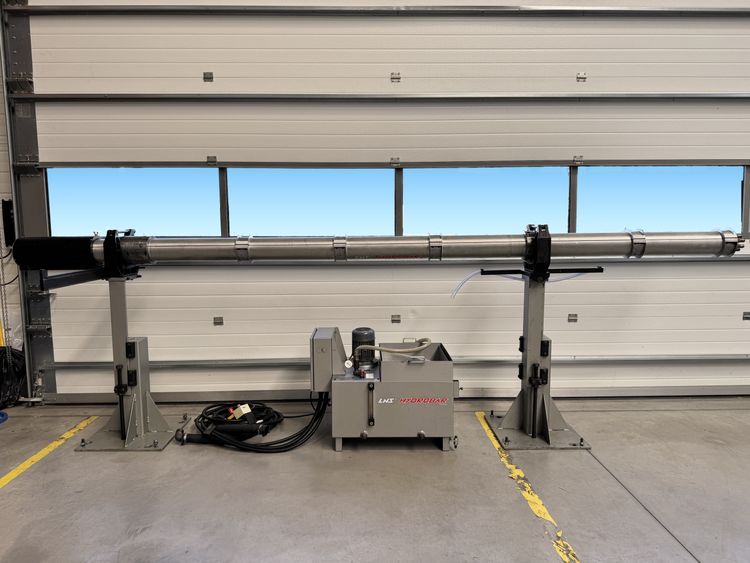

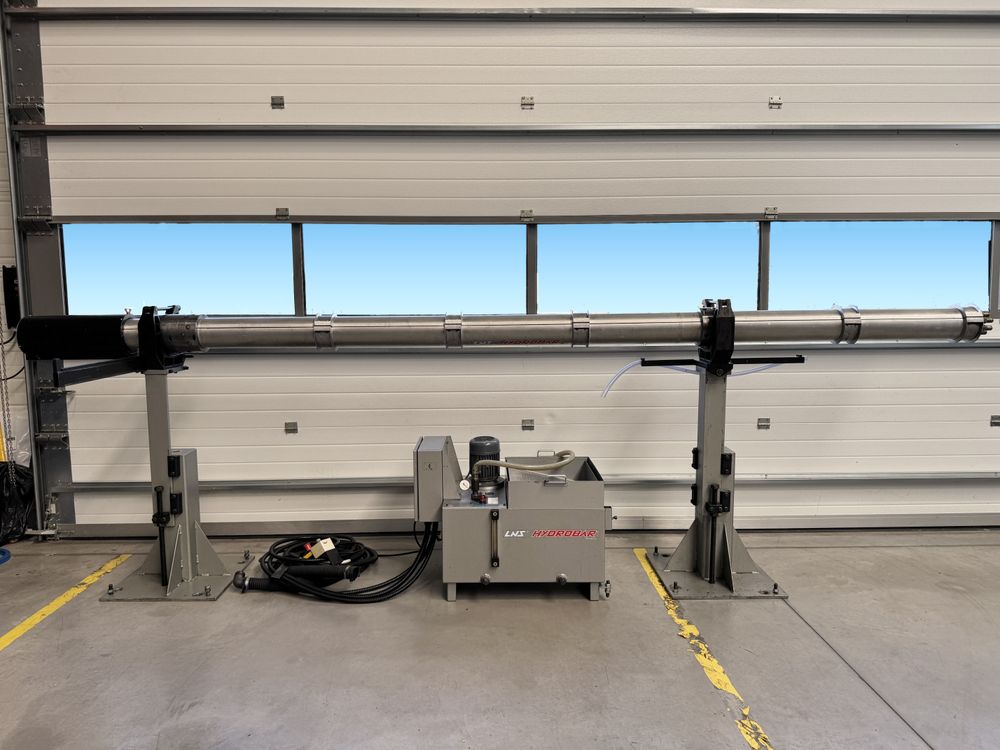

x1 LNS HYDROBAR bar feeder
x1 coolant tank
x6 radial live tool holders VDI 20
x5 axial live tool holders VDI 20
x21 static tool holders VDI 20
x1 parts catcher basket VDI 20
x17 VDI 20 blanking plugs
x28 collets
x4 collet chucks
x1 3-color status light
x1 "Electrical diagrams" manual
x1 "Operation & Maintenance" manual
x1 Operator’s manual



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
