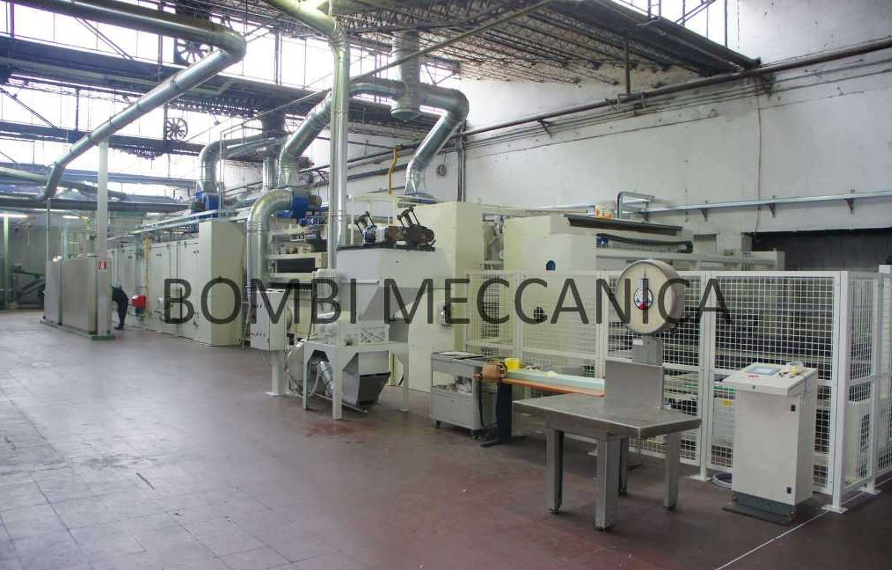

Bombi Complete second-hand aerodynamic thermobonding line for nonwoven

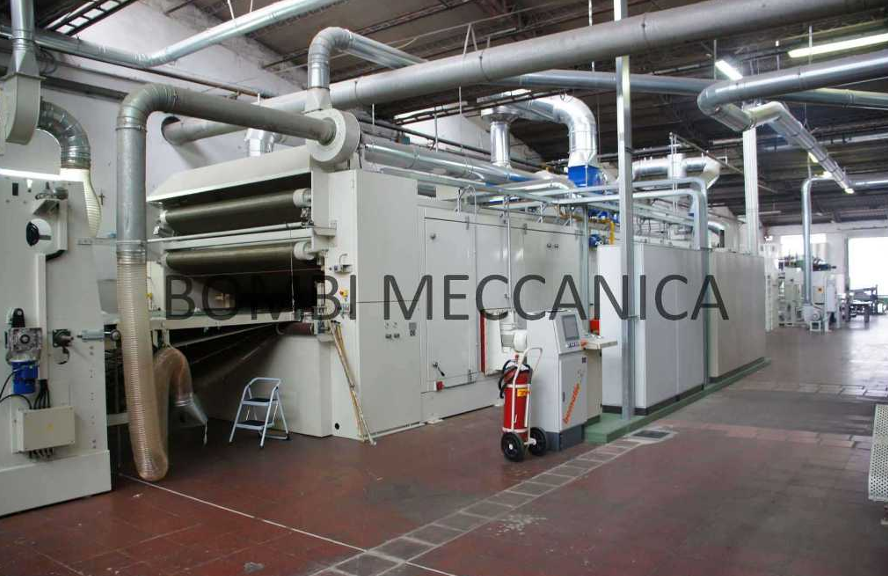

N.1 THERMOBONDING OVEN
Type : Flat oven, single pass, with air through technology.
Hot Sections: Nr. 3
Length of each sections: 3.300 mm, total 10m of heating zone + Entry \ Exit section
Material transportation: 02 Belts in steel
Belts adjustable distance from control board up to 250mm.
Top belt magnetic, supported with magnets.
Mechanical Speed: 1-15 m\min
No. 3 Air fans driven with frequency converters. One fan each section
Heating by No. 3 Gas burners, modulating acting, controlled from PLC.
Smokes extracting system.
Net filters into the air channels.

N.1 COMPACTING CALENDER, AT OVEN EXIT
2 Rolls of 450mm
Rolls surface: Hard chromed
Pneumatic pistons to supply squeesing pressure
Rolls distance adjusted manually, by mechanical blocks

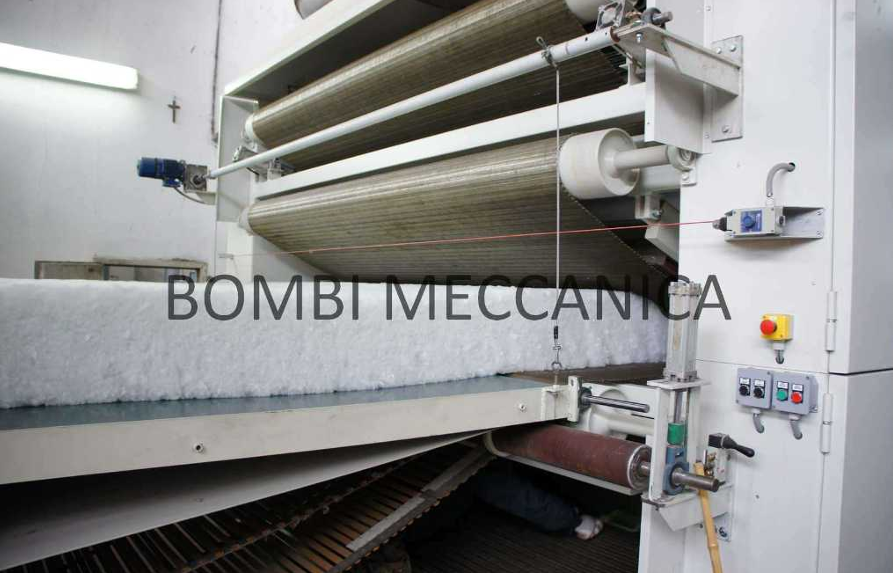

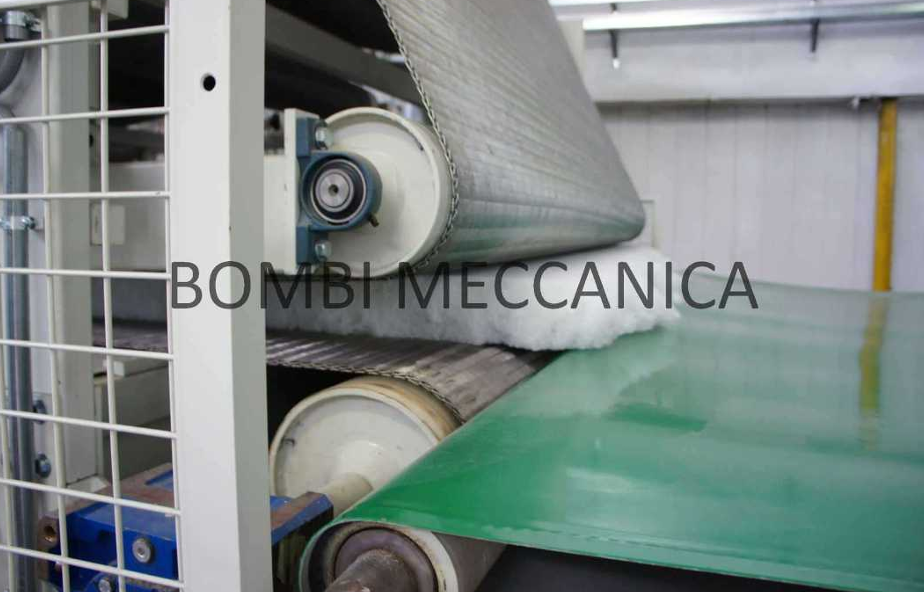

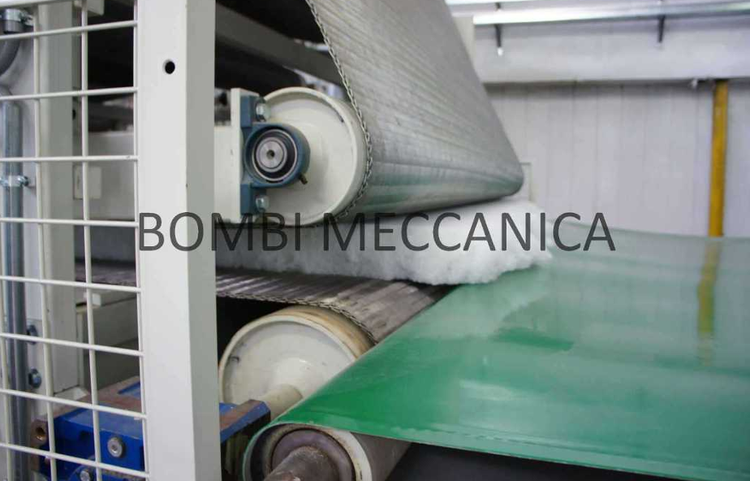

N.1 FINAL FELT COOLER AFTER CALENDER, DOUBLE BELT
Ventilation mode = Ambient air aspiration from bottom
Machine length = 3,7m
Equipped with 02 fans
Belts: 2 Steel belts. Upper belt supported with magnets. Belt distances adjustable up to 250mm

N.1 COMBINED CUTTING MACHINE
Slitters type : 05 High speed sharpened discs, driven + No. 2, Crush cuts discs.
Disks activation: Pneumatic pistons controlled via individual valves
Transversal cut : Via guillotine type cutter
Guillotine blade width: 2.800mm
Guillotine blade activation: Via motor + two eccentrics on the sides
Anvil system, opposite to blade: Nylon square bar
Final built in winder at the end of the exit belt of the cutter.

N.1 Electric control panel + HMI panel for end of line
Three-phase tension 400V-50Hz
PLC + HMI= SIEMENS
Main control board with all elements.
2 Consoles with operator panel HMI touch-screen SIEMENS
Software of supervision and operative system.
