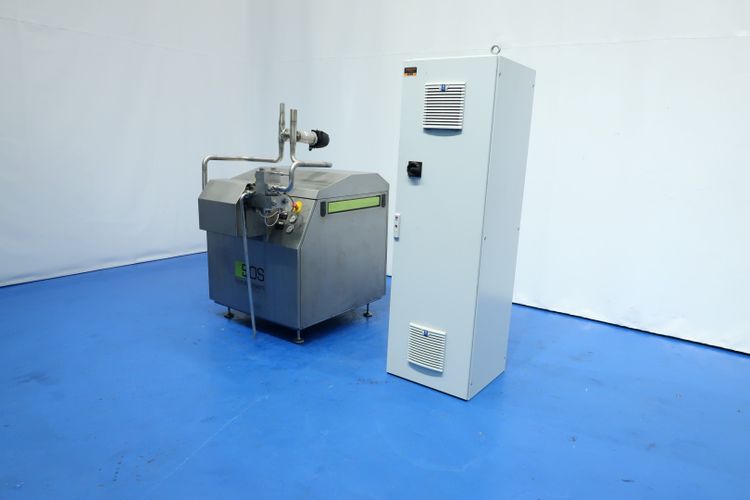

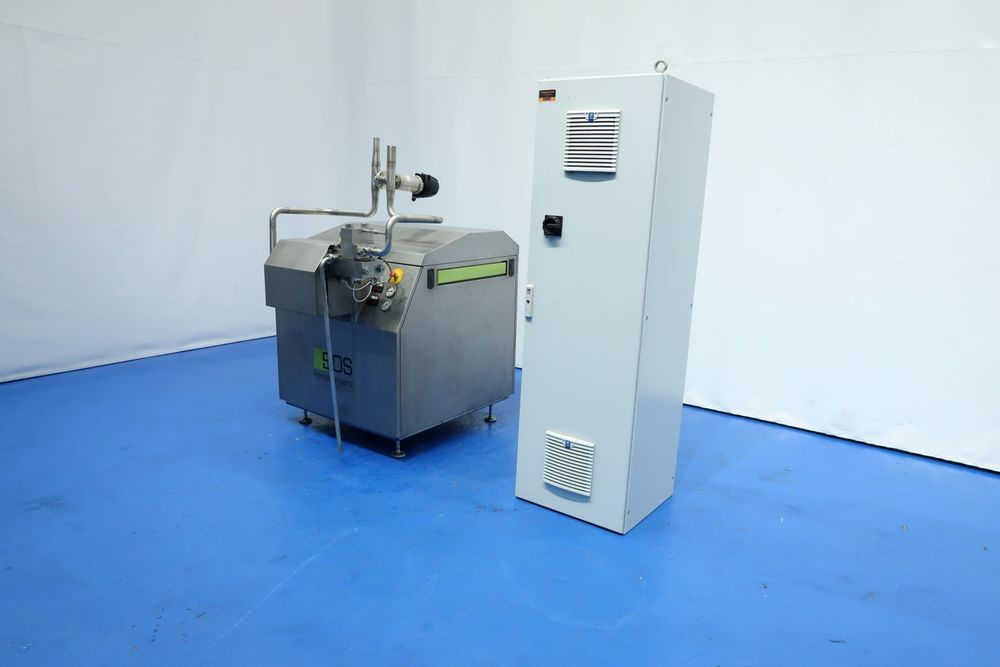

Bos MG 14-450B, High pressure homogeniser

Capacity 600-2.000 liter per hour
2 Stages with hydraulic pressure control.
3 Ceramic Pistons, piston diameter: 32 mm and stroke: 95 mm.
Ball valves for viscose products.
Connections: (in) 2" Din and (out) 2" Din.
Current motor power: 30 kW
and maximum pressure in current configuration
with this motor up to 400 bar.
Freestanding control panel (with Danfoss frequency converter).
Set tools. Overpressure valve (480 bar).
With Gea bypass valve. Manometer on first and second stage.
2 x Electronic pressure transmitter.
Flowswitch on cooling water.
Remote pressure control. Documentation available.
Total dimensions: 155x115x177 (lxwxh) cm - weight: ca. 1.235 kg.
