Bos MG 14-450B, High-Pressure Homogenizer

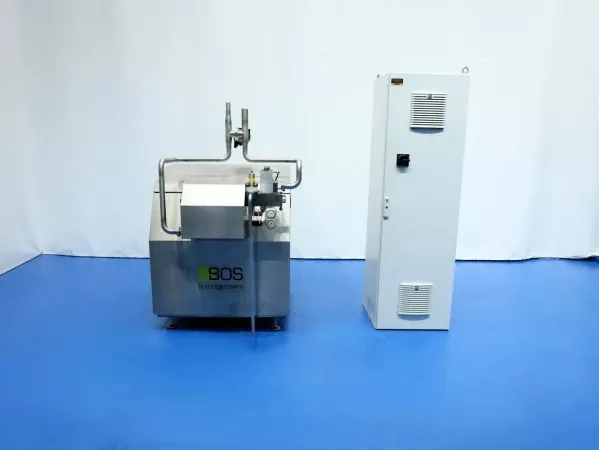

High-Pressure Homogenizer with Remote Control Panel

Capacity 600 – 2.000 l per hour
Power 30 kW
Dimensions 155 x 115 x 177
Weight +- 1.235 kg

This high-pressure homogenizer features two stages
with hydraulic pressure control and is equipped
with three ceramic pistons,
each with a diameter of 32 mm and a stroke of 95 mm.
It has ball valves suitable for viscous products
and standard connections of 2" DIN for both inlet and outlet.
The motor currently installed delivers 30 kW,
allowing a maximum pressure of up to 400 bar in this configuration.
The unit includes a freestanding control panel
with a Danfoss frequency converter,
a complete set of tools, an overpressure valve rated
at 480 bar and a Gea bypass valve.
Manometers are installed on both the first
and second stages, along with two electronic pressure transmitters.
A flow switch monitors the cooling water
and remote pressure control is available.
