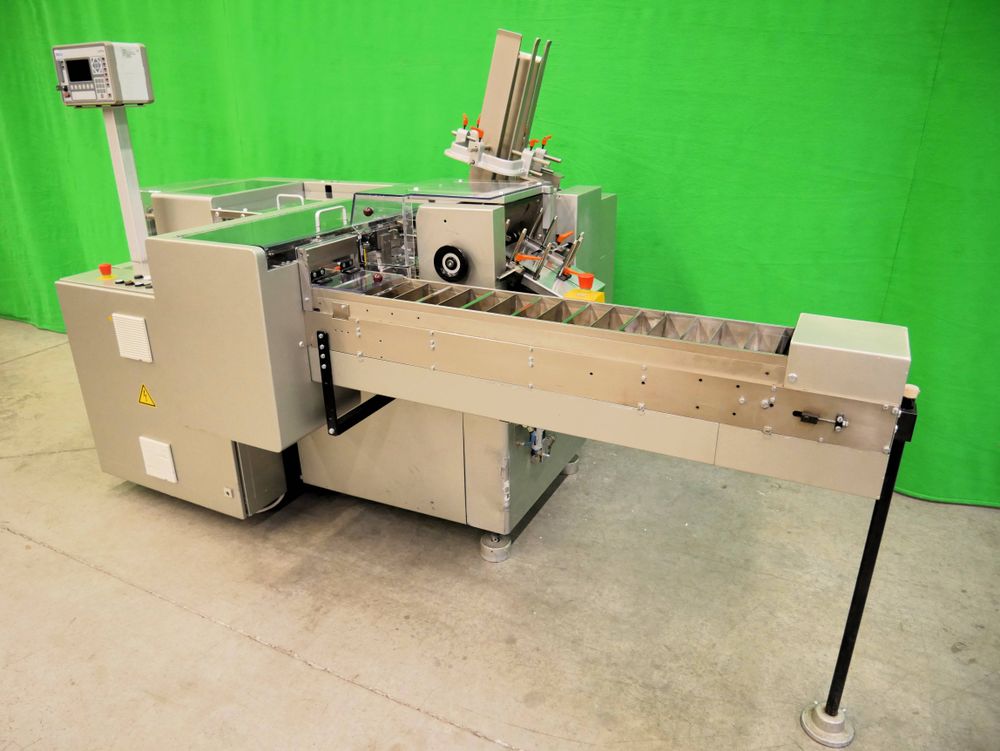

Bosch Cartonetta 75

Horizontal cartoning machine with product cup conveyor
cup conveyor, folding carton format range: min. 15 x 15 x 54 mm (A x W x H),
max. 92 x 66 x 180 mm (A x W x H), output up to 75 folding cartons per minute,
leaflet folding unit for unfolded inserts from the stack, offset tuck closure,
Laetus Argus 6012 code reader for folding carton (opposite the insertion side),
inserts (both sides) and insert presence detection, flap encoder (color embossing via embossing wheel, 2 lines),
electrical connection 400V/50Hz, power 4 kW, compressed air 6 bar,
machine footprint approx. 2900 x 1300 mm (L x W), machine height approx. 1600 mm, net machine weight approx. 800 kg kg,
Retrofit in 2009 by HVS including new Siemens SIMATIC S7-300 machine control + SIMATIC Panel
