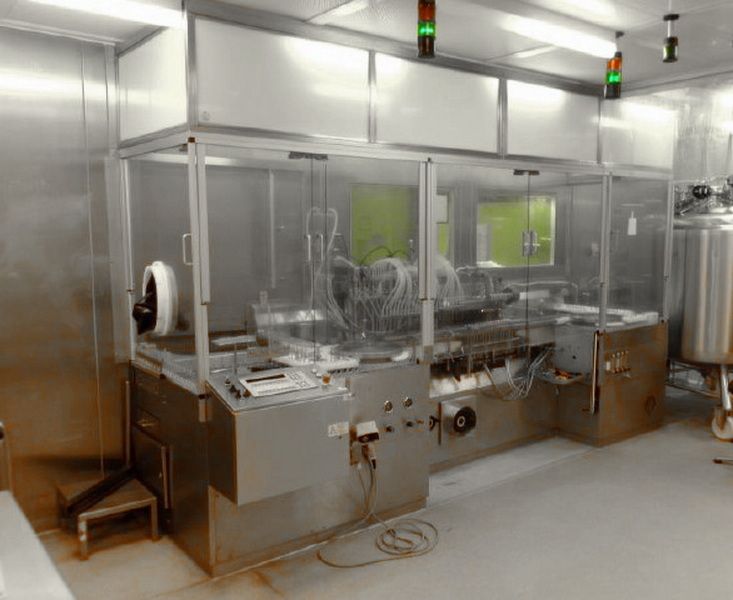

Bosch RRU 3062, HQS 3420, ALK 5080

Bosch RRU 3064 washing machine
Capacity max. 18,000 ampoules/h
Ultrasonic cleaning in heated water bath
Internal and external cleaning with hot pumped water/compressed air/fresh water/compressed air
Transfer of ampoules to sterilization tunnel
Shared control cabinet with HQS and ALK 5080
PLC Siemens S5

Bosch HQS 3420 sterilization/depyrogenation tunnel
Capacity max. 18,000 ampoules/h
Drying, sterilization, and depyrogenization of ampoules at a hot air temperature of 150-350°C
Cooling of ampoules to max. 10-15°C above cooling air temperature
New tunnel conveyor belt in August 2021

Bosch ALK 5080 filling/sealing machine
Max. output 18,000 ampoules/hour
Pre- and post-gassing
Filling
Preheating
Sealing via skewer removal, sealing gassing
Outfeed conveyor belt
Siemens S5 PLC

Included format sets (Ø x length):
1 ml, 10.75 x 60.0 mm
2 ml, 10.75 x 72.0 mm
3 ml, 12.75 x 75.0 mm
5 ml, 14.75 x 83.0 mm
10 ml, 17.75 x 102 mm
20 ml, 22.50 x 113.0 mm
