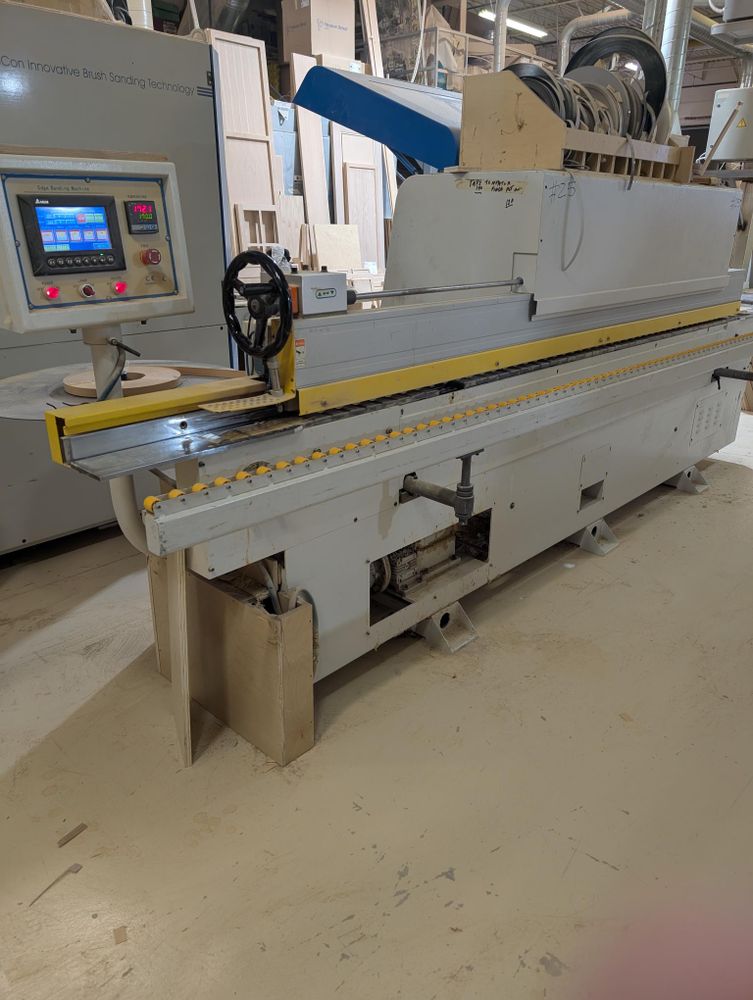

Boss KDT-360

Features:
• Hot Melt Glue Pot Application Station with Heated Fence
• Edgestrip Application Station with Pneumatic Guillotine
• Five-Roller Pressure Station with Pneumatic Pressure
• End Trimming Station – Cut-Off Saws with Angle Adjustment
• Top & Bottom Trimming Station – Tiltable to 45°, with 2mm Radius Cutters
• Full Safety Covers Over Motorized Cutting and Trimming Units
• Touch-Screen Control Panel at Infeed Position
• Glue Pot Temperature Standby Switch
• Fluorescent Light Inside Safety Hood
• Feed Jogging Button to Assist Setting Up
• Pneumatic Shut-Off Gate on Glue Roller
• Front & Rear Tape Overlap Adjustment from Electrical Control Panel
• Large 3” (75mm) Dust Exhaust Hoses on Trimming Units for Efficient Extraction
• Large Window in Safety Hood for Better Visibility
• Pneumatic Gate Prevent Panels Being Fed in too Close to One Another
• Mechanical Digital Readout on Height Setting on Top Beam for Different Panel Thickness
• Precision German Slideways on Cut-off Saws
• European High Frequency Motors on Saws and Trimmers
• Cut-off Saws and Trimmers Can be Set on an Angle
• Feed Speed – 12m/M
• Length – 3,200mm
• Weight – 1,200 Kg

Technical Specifications:
Panel Thickness: 10-60mm
Minimum Panel Width: 80mm
Edge Thickness: 0.4-3mm
CE-CSA Components
Feed Motor: 1.5 kW
End Trim: 2 Motors - .35 kW
Top & Bottom Trim: 2 Motors - .75 kW
Buffing: 2 Motors - .25 kW
