Bottene R550 L6000
Ref :
2733498-15-MT
Condition :
Used
Manufacturer :
Bottene
Model :
R550 L6000
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

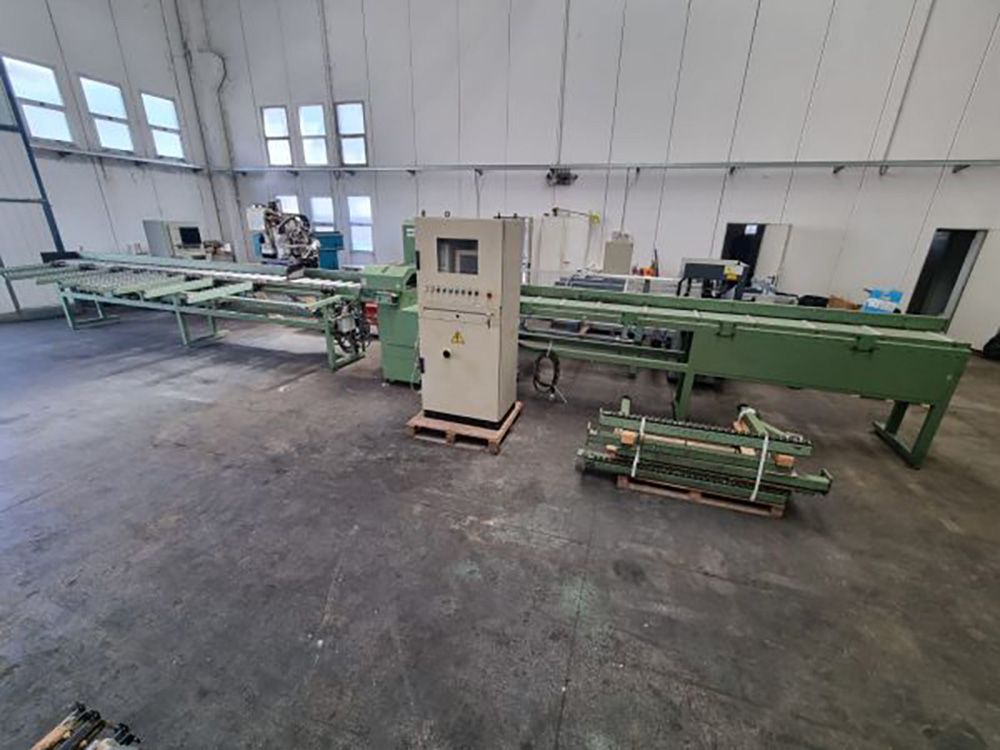

Cross-cutting line
PLC MISSING – MACHINE NON-FUNCTIONAL, REQUIRING RETROFITTING
CE-compliant machine
Motorized infeed roller conveyor, 5000 x 500 mm
Complete with n. 4 cross-cut workpiece supports with idle rollers
R550 miter saw
Max. blade diameter 550 mm – 4 kW (5.5 hp) motor
Max. cutting sections 300x150h, 380x120h, 420x100h
Two-hand control cutting 6500x500 mm motorized unloading roller conveyor with lateral unloading by motorized chains
FEL100 motorized reference stop – 6000 mm stroke – 70 m/min movement speed – 1 mm accuracy
PC control panel with optimization program
User manual + CE certificate + wiring diagram
Transport dimensions 7500x2400x2200h mm
Weight 4000 kg
