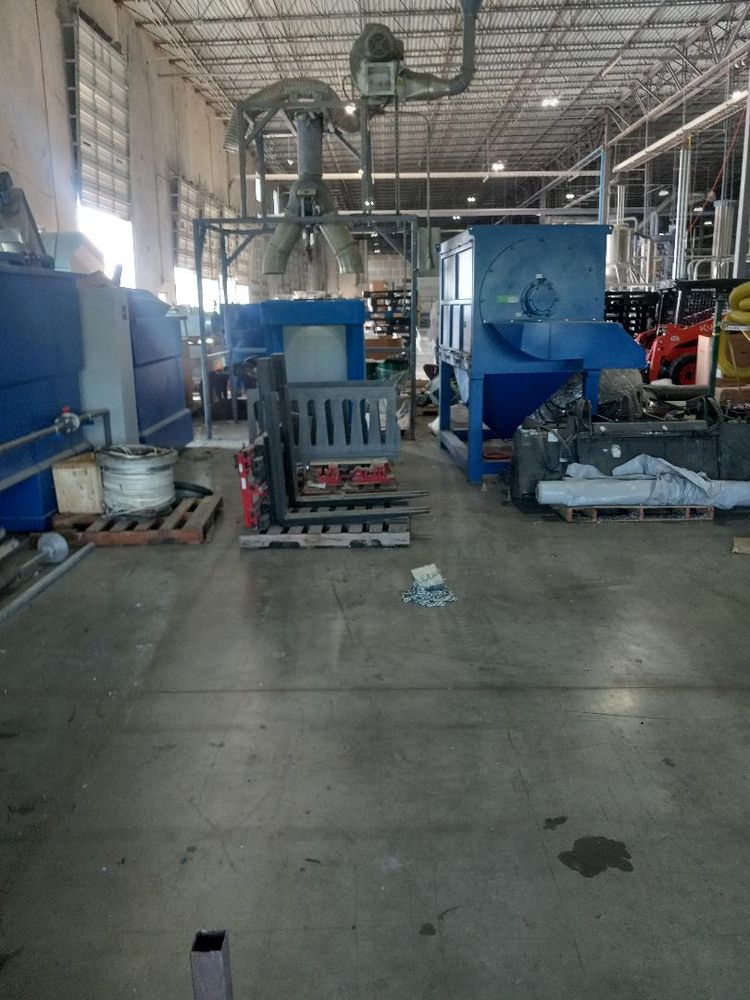

Bottle Wash System

Amstar Machinery LTD Bottle Wash System
Water treatment RDAF-30 1
2 Screw Conveyor (feeding friction washer)
LX-356A – TS1000 Friction washer
By pass screw conveyor 1 LX356B, LX356C
Bypass screw Conveyor 2

Control Cabinet
Item. Model Description/technical specifications
01 RDAF-030 Dissolved Air Flotation 1 unit
Capacity: 0-20m3/hr
Material: carbon steel
02 N/A Clean Water Tank 1 unit
Material: carbon steel
Thickness: 6mm
Dimension: 4000*2000*2550mm
Effective Volume: 18.8m3
03 N/A Collection Water Tank 1 unit
Material: carbon steel
Thickness: 6mm
Dimension: 3000*2000*1960mm
Effective Volume: 10.8m3
Cover: Stainless Steel Screen
04 CP51.5-80 Submersible Pump 2 pcs
Flow rate: 30m3/h
Head: 10m
Power: 1.5kw
1:105 RY-1000 Chemical Dosing Unit
Material: PE
Volume: 1000L
1: 06 SEKO PAC Dosing Pump unit
Flow rate:
220L/h
Zhangjiagang
1: 07 PT-1000 Polymer Preparation Unit
Material: Stainless Steel
Volume: 1000L
1: 08 SEKO PAM Dosing Pump unit
Flow rate: 220L/h
Power:0.37kw
09 L35-65-2P In-line Pump 2 pcs
Flow rate: 30m3/h
Head: 28.5m
Power: 3.7kw
10 N/A Level Meter 2 pcs
Material of underwater: SUS304
Type: Electrode probe type level meter
1: 11 N/A Solenoid Valve
Brand: SANLIXIN
1: 12 N/A Pipeline of Emptying unit
Material: U-PVC
1: 13 N/A Sludge Collection Tank unit
Volume: 2m3
Material: PE
Pipeline material: U-PVC
1: 14 N/A Control System
Electric Component: Brand: Schneider
Technical
Skimmer system
Walkway & Handrail
Control Panel
1.1 chemical reaction tank 2 sets
Tank Reinforcement in Shell & Frame
1.1.1 Coagulant mixing tank Assembling unit 1 set
Mix axle Paddle
Reduction 480V, 60hz,3phase
Motor IP55, F Insulation N=0.4KW 72RPM
1 set: 1.1.2 Flocculant mixing tank Assembling unit
Mix axle Paddle
Reduction 480V, 60hz,3phase
Motor IP55, F Insulation N=0.4KW 48RPM
1 Set: 1.2 DAF Tank
Reinforcement
Clean water catch pipe
Outflow
1 set: 1.3 Compressor Vessel Tank Assembling unit 1
1 set: Air dissolving Tank
` set: Inside Components
Pressure gauge 2 pcs
Solenoid valve 1 pcs
Liquid level gauge 1 pcs
Pipes
Valve
Recycle Pump Lift=50m N=3KW 9m3/h 1 pcs
1: Air compressor N=1.5KW 0.2m3/min, 0.8Mpa
Micro bubble generator multiple pcs.
1 set: 1.4 Skimmer System in Shell & Frame
Motor Speed: 7RPM 1 pcs
Chain wheel 2 pcs
Scraper Axle
Control cabinet
Electrical components
1 set: 1.6 Hand Rail and Walkway Accordance: (GB 4053.4-1983)
Frame, Walkway and Ladder
