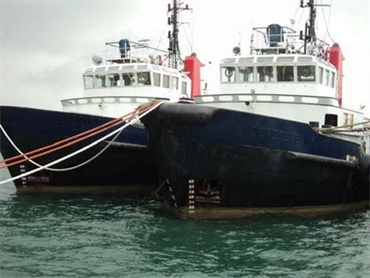

BP Twin Cycloidal Propulsion Towing Tug 35-tonne

Length Over All 30.79 m
Length Between Perpendiculars 31.45 m
Beam Molded 9.20 m
Depth Molded 3.78 m
Maximum Draught 3.21 m
Summer Freeboard 280 mm
Summer Dead Weight 118.46 T
Light Ship 421.59 T
GT 292
NT 87
Speed/Max Speed 10.0 kns / 12.0 kns
Bollard Pull 35.0 T

Main Engines Stork Wartsila 4tew SWD 9 FHD 240
Main Engines Type Twin Diesel Engines
Continuous Rating @ 1000 RPM 1119 kW / 3200 BHP
Propulsion Manufacturer Voith Schneider Propellers
Propulsion Type Cycloidal Propeller Assembly
Main Reduction Gear Stainless Steel
Tail Shaft Stainless Steel
Auxiliary Generators 2
Endurance 10 days
Bunkers Grade Gas-Oil 107 m³ / 100.58 t

Anchors 2 x 405 kgs Cast Steel Stockless
Anchor Chain Diameter 20.6375 mm
Anchor Chain Length 5 lengths x 27.5 m = 137.50 m each
Mooring Lines 2 x 220 m x 7” diam Breaking 61.40 t
Mooring Lines 1 x 220 m x 10” diam Breaking 96 t

Fire Pump Capacity m³/h coupled to main engine reductor
FIFI Monitor 2 x 700 m³/h
Foam Pump 2 m³/h
Breathing Apparatus 1 MSA + 2 FABR + 3 DRAGER
Escape Sets 2 DRAGER
Fire Protecting Blanket 1 set
Fire Hoses 2”1/2, dos 1”1/2
Firefighting Switch 1 set
Breathing Apparatus SIGMA with 2 bottles
EEBDs 4 units
Portable Fire Extinguishers 11 units

Inflatable Life Raft 2 x 10 persons RFD
Life Rings 2 x 27.5 m rope
Life Rings 2 Automatic Self Lighting
Life Rings 2 Smoke Signal
Line Throwing Apparatus 2 x 230 m Range IKARO
Life Jackets 11 units
Immersion Suits 7 units
Parachute Signals 6 Units IKAROS
Man Overboard Equipment IKAROS

Radar Furuno Model 1835
GPS/DGPS SIMRAD MX 500
Rudder Indicator Decca Arkas type 42660B
Gyro Kelvin Hughes two repeaters in bridge forward
Magnetic Compass Standard – Observator
VHF 2 x Sailor RT-2048
VHF Watch 70 JRC JHS-32A
Intercom TELEVOX Compact 10 ECD (forward)
VHF GMDSS Handy SURVIVAL ACR SAT 406 Electronics
SART JOTRON Serie 1680
Navtex Mc Murdo Nav-7
RTF SSB Alphatron DEGEG 3120
MF/HF/DSC Debeg 3818-3120
Alarm Board MIRCOM
Aldis Lamp MK 10
EPIRB RLB-32 ACR Electronics
Engine Controls from Bridge
