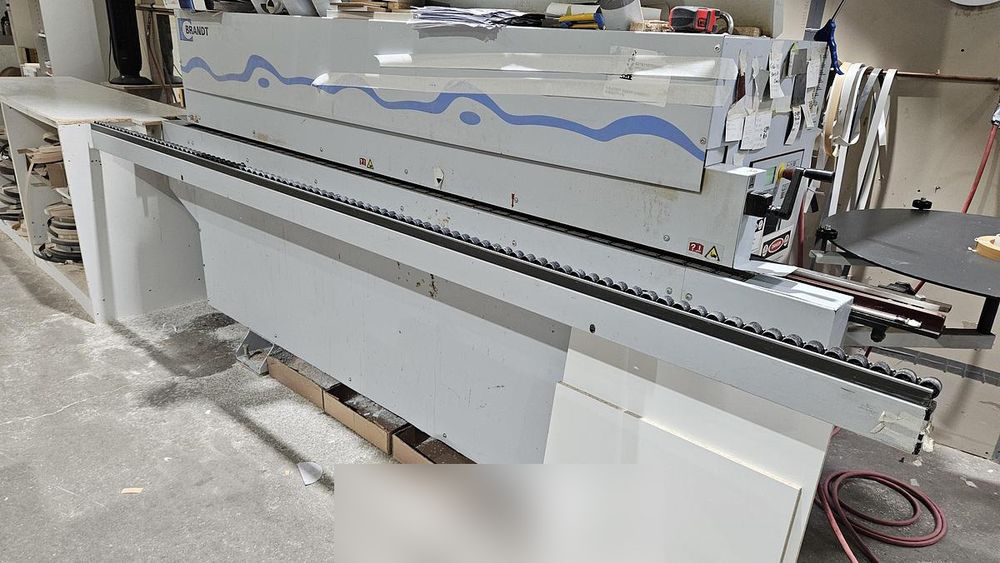

Brandt Ambition 1110, KDF 110

Edgebander used edgebander with Pre-Milling
0.4 - 3 mm (1/8") Edge thickness
cap.; 8 - 40 mm (0.3" - 1.57") panel thickness;
60 mm (2.3") min. panel width;
140 mm (5-1/2") min. length.

Equipped with:
- Infeed fence: Adjustable; manual with digital indicator.
-Premilling unit
- Gluing System: Hot-melt; quick heat-up time; easy maintenance.
- Edge Magazine: Automatic for strip & coil stock; 3 mm PVC guillotine.
- Side Pressure Section: (1) Driven plus (2) idle rollers w/digital readout setting.Workstations:
- End Trimming Unit: Double-motor end trim; (2) x 1/2 HP - 12,000 RPM motors; chamfers 0° - 15°.
- Multi-Trimming Unit: Top/Bottom for flush/bevel/radius trimming; (3) quick setting positions; motors: (2) 1/2 HP - 12,000 RPM; with insert knives.
- Buffing Unit: Top/Bottom; (2) 1/2 HP motors.
- Scrapping Unit: Top/Bottom Scrapping Unit

Controls:
LCD Display: Approx. 2 x 6" with soft keys for fast navigation and operator comfort. Complete with:
- Feed Speed: Fixed; 8MPM (26 FPM); 3 HP feed drive.
- Sound enclosure and Scraper collection box. -- Actual Model is BRANDT AMBITION 1110 (KDN 110).
