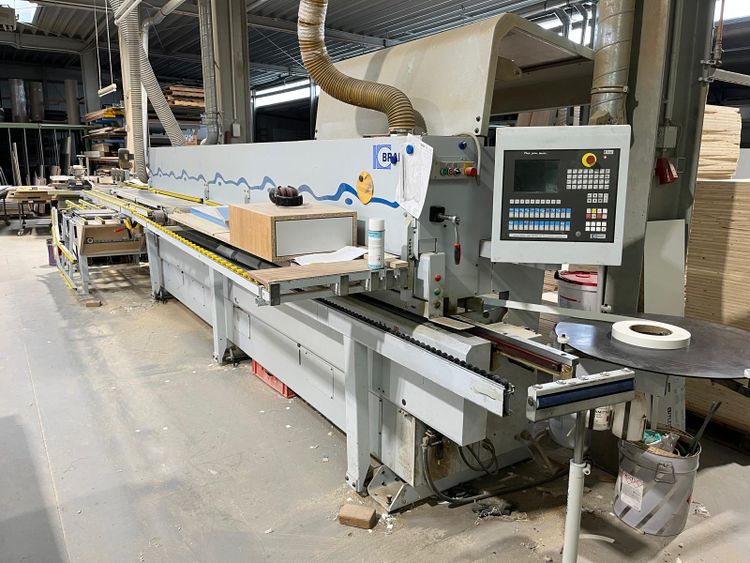

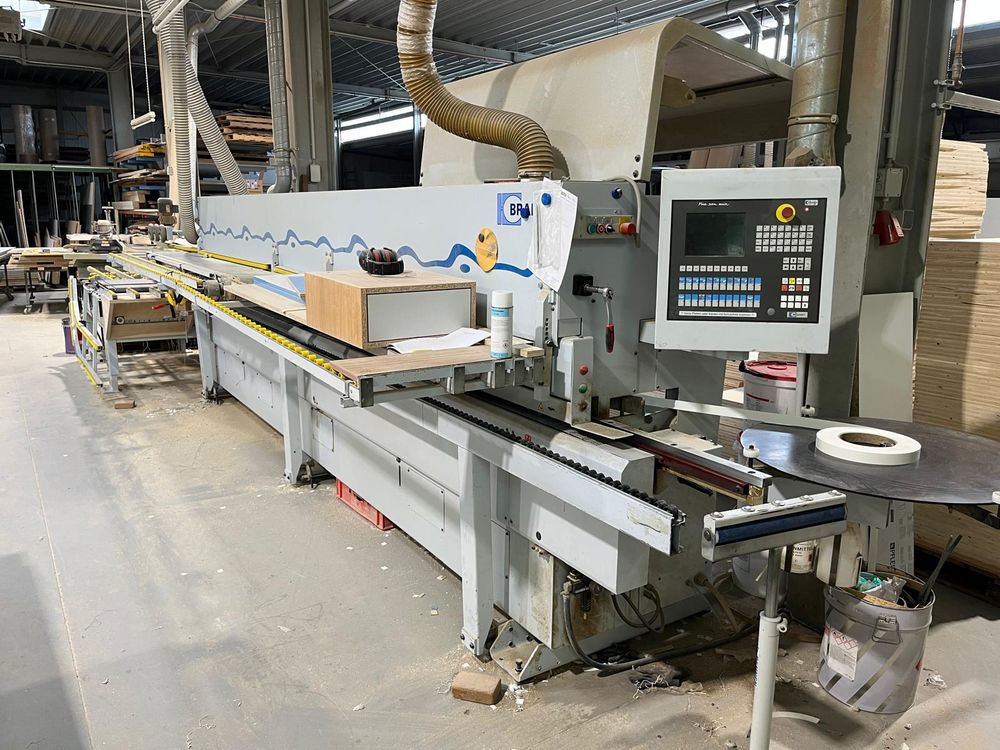

Brandt KDF 670

Edge banding machine
Manually adjustable infeed guide
Jointing unit with two 2.2 kW motors, both pneumatically controlled
Hot melt adhesive dispenser
Pressure zone with one main pressure roller and three secondary pressure rollers
End capping unit with two 0.35 kW motors, automatically adjustable from chamfered to straight end caps via program
Edge milling unit with two 0.55 kW motors for flush milling, chamfering, or radius milling with 4-position fixed-point adjustment for side probing
Groove milling unit with horizontal shaft
Copy milling unit with two 0.35 kW motors with pneumatic input/output control
Profile scraper unit with pneumatic input/output control
Flat scraper unit
Buffing unit
