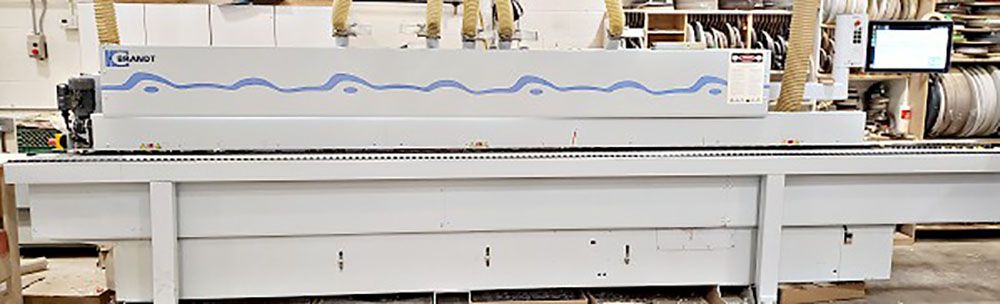

Brandt KDF

Edgebander (w/Pre-Milling & Corner Rounding, with HIGHFLEX Automated package:
-- Edge & Workpiece Capacity:0.4 - 8 mm (0.016 - 5/16") edge; 8 - 60 mm (5/16 - 2-3/8") panel thickness; 160 mm (6-3/8") min. panel length and 70 mm (2-3/4") min. panel width.Equipped with:
-- Pre-Milling Station, (2) motors @ 2.25 kW (3.0 HP), 12.000 RPM, LH & RH rotation w/pneumatic jump control for chip-free and clean panel edges. Equipped with diamond cutter heads
-- In-feed Fence, with servo motor positioning.
-- Infrared Radiant Quartz Heating Unit between glue roller and pressure section.
-- Automatic Edge Magazine, for strip & coil stock, strips 0.4 mm - 8 mm (0.016 - 5/16"), coils up to 3 mm PVC and "HD" guillotine.
-- "Quick Change" Glue Tank for maintenance & glue color change.
-- Pressure Section, 1st. roller driven plus (3) idle rollers, timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover.
-- Feed Speed, variable 8 - 14 MPM. (26 - 46 FPM), 11 MPM (36 FPM) when using contour trimming.
-- BRANDT "Power Touch Control, Memory: 256 MB Ram, 1 GB Flash Card Drive, Operator control panel w/22" color HD wide screen, soft keypad & internal modem for remote diagnostic link.Workstations:
-- End Trimming: -- (2) Motor @ 0.35 kW (1/2 HP) 12,000 RPM, automatic chamfer from control panel 0?- 15?.
-- Flush/Bevel-Fine/Radius Trimming Unit: Top/bottom (2) motors, 0.55 kW (3/4 HP) 12,000 RPM, auto tilt positioning 0? - 25?,
with combination flush/radius/chamfer cutterheads; horizontal and vertical tracing wheels, equipped
with brushless multi-axis Servo motors for positioning of work-unit & horizontal copy wheels for quick changeover.
Includes (3) positioning options, profile 1, profile 2, and flush trimming.
-- Corner Rounding Unit:(1) Motor 0.35 kW (1/2 HP) 12,000 RPM for leading & trailing edges vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness.
-- Scraping, Multi-Profile (PVC):Top/bottom with (2) profiles. 1 mm and 2 mm or 3 mm instead of 2 mm, servo control positioning of vertical & horizontal copy wheels. PVC scrape collection box.
-- Scraping Glue Unit:Flush top/bottom on panel surface with floating insert knives.
-- Buffing Unit: Top/bottom (2) motors, 0.10 kW (0.125 HP) 2,800 RPM.
-- Riepe anti- adhesion. -- Riepe detergent. Complete with:Motorized, programmable hold-down pressure beam; padded sound enclosure, used tooling and Original Factory machine documentation.
