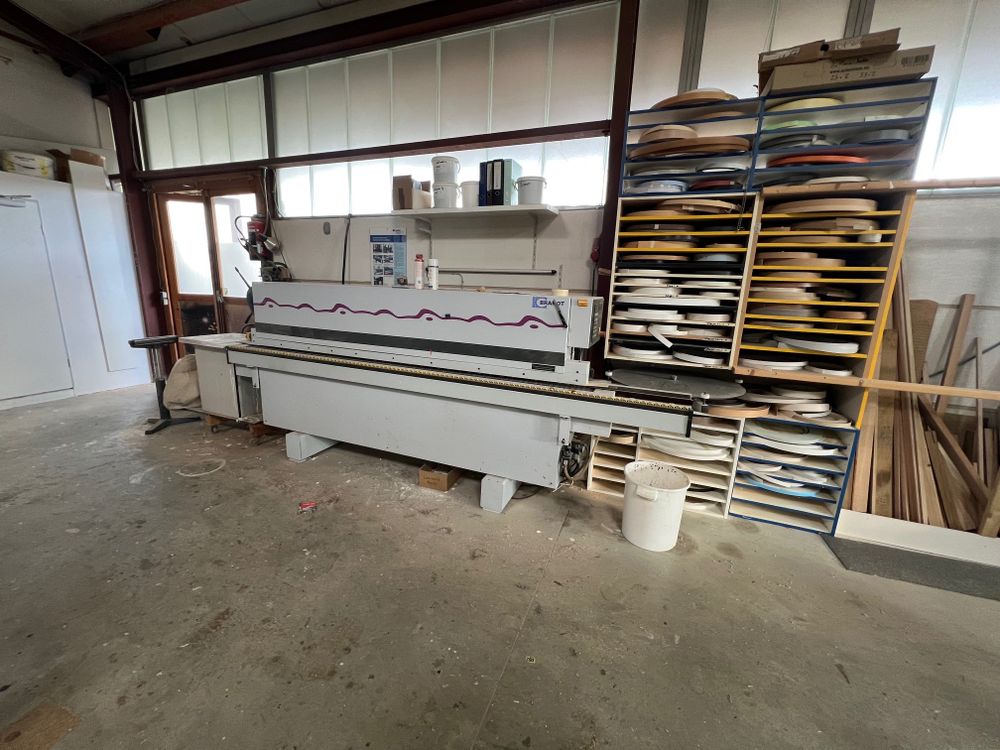

Brandt Optimat KD 56 C
EUROPE (Western and Northern)
Used machine
Glue pot for granulate with application via glue roller
Automatic edge magazine for roll material and fixed lengths
Pressure zone with pneumatically driven main pressure zone
Dual-motor cross-cut saw unit (straight and 15-degree bevel)
Dual-motor milling unit, top and bottom (flush, radius, bevel)
Scraper unit (radius)
Dual-motor buffing unit
Extendable workpiece support 350 mm
Technical specifications:
Workpiece thickness 8 - 40 mm
Workpiece width min. 60 mm
Workpiece length min. 140 mm
Edge thickness:
* Fixed lengths 0.4 - 3.0 mm
(max. 3 x 45 mm)
* Roll cutting 0.4 - 3.0 mm
(max. 3 x 30 mm / 0.8 x 45 mm)
Feed rate approx. 9 m/min.
Extraction nozzle 100 mm
Electricity: 400 V, 3-phase, 50 Hz
Power rating: 3.8 kW
Compressed air connection: 6 bar
Weight: approx. 860 kg
Machine length: approx. 3,075 mm
