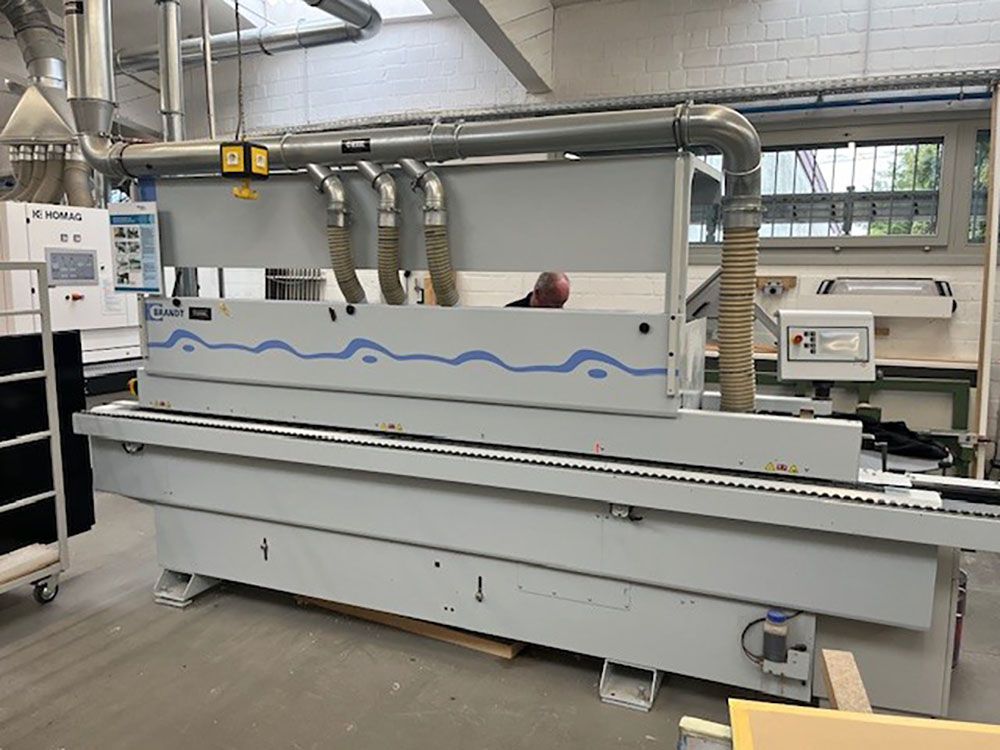

Brandt Optimat KDF 220 C

Single-Sided Edge Banding Machine
Fixed Stop Side, Right
Infeed Guide Manually Adjustable
Feed Rate: 11 m/min
Maximum Feed Rate with Profile Cutter: 11 m/min
Working Height: 950 mm
Pneumatic Connection: Min. 6 bar
Workpiece and Edge Parameters:
Minimum Workpiece Width:
for workpiece thickness 8-22 mm: 70 mm
for workpiece thickness 23-60 mm: 120 mm
Workpiece Overhang: 38 mm
Workpiece Thickness: 8 - 60 mm
Max. Edge Height = Workpiece Height: + 5 mm
Edge Material Coil: 0.4 - 3 mm
Max. Edge Cross Section
for PVC: 135 mm²
for Veneer: 100 mm²
Max. roll diameter: 830 mm
Edge material: strips: 0.4 - 3 mm
Max. edge cross-section
for strips: 165 mm²
Edge thickness up to 6 mm possible by changing the pressure zone
Unit configuration:
Jointing unit 2 x 2.2 kW, 200 Hz (same and reverse feed)
Gluing unit A3 with workpiece preheating
Cross-cutting unit, bevel/straight, 2 x 0.18 kW
Trimming unit 2 x 0.27 kW, reverse feed
Profile trimming unit (corner trimming) 1 x 0.35 kW WD 40
Profile scraper with quick-change heads
Glue joint scraper 5820

Control system:
Easytouch
Dimensions: approx. 4280 x 1300 x 1170 mm
Weight: approx. 1400 kg
