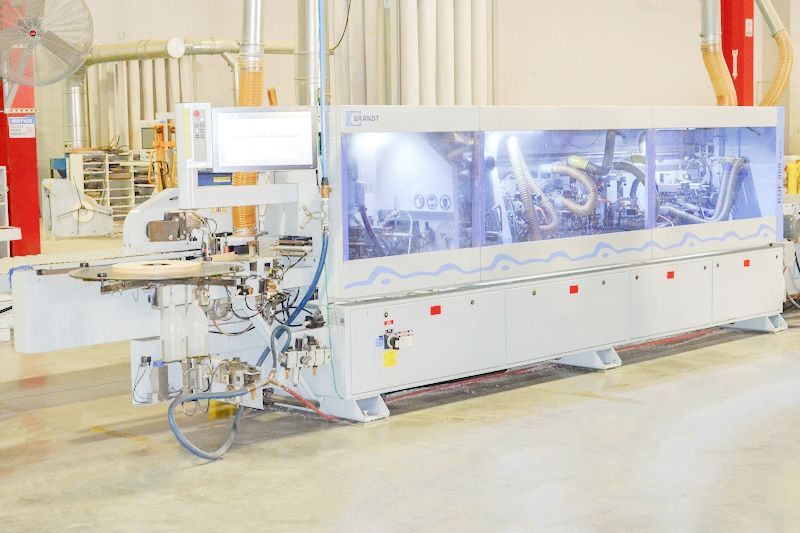

Brandt Optimat KDF 860 C

Edgebander
This machine only has 3,120 working hours.
Elect./Voltage: 400 V, 60 Cy, 3 Ph.
Includes Pre-Milling & Corner Rounding

From the manufacturer:
Specifications:
Edge thickness 0.4 - 12 mm (0.02" - 0.50"), incl. 3 mm (0.12") PVC banding.
Workpiece thickness 8 - 60 mm (0.314" - 2.375").
Min. workpiece width 70 mm (2.76"), Min. workpiece length 120 mm (4.75").
Working height 950 mm (37.80").

Equipped with:
3 HP (2.2 kW) Feed motor for Variable feed speeds 26 - 65 FPM (8 - 20 MPM) applying solid or using corner rounding units.
Infeed panel support with Roller guide extends out to 800 mm (31.4"), Motorized top pressure beam adjustment with 0.16 HP (0.12 kW) Motor.
80 mm (3.15") W Heavy-duty feed chain, with Rubber pads, Automatic chain track lubrication.
Top pressure section with Double-wide compound V-belt to prevent panel movement.
All cutting & trimming workstations are HF (High Frequency Motors), Line control (no limit switches) for workstation functions.
Top & bottom spraying device located in front of pre-milling station for easy residual glue cleaning.
Manual adjustment in case of modified panel overhang.
Automatic edge infeed.
Reinforced guillotine for coiled edgebanding material, 0.3 - 3 mm (0.01 - 0.12") Thickness & 8 - 60 mm (0.314" - 2.375") Height.

Pre-Milling Station:
(2) 3 HP (2.2 kW) 12,000 RPM Vertical milling/jointing heads
Electro-pneumatic jump control on 1st motor
Electronic frequency inverter for control of motor speed & braking
SIKO digital units for vertical & horizontal adjustments.

Glue Pre-Heat Unit:
2.5 kW, Approx. 3 kg (6.61 Lbs.)
Capacity, Glue viscosities 25,000 - 80,000 mPa
Temperature range 120° - 245° C (248° - 473° F)
Max. melting capacity 6 kg/Hr.

EVA Hot Melt Glue Application System:
Melting capacity Approx. 6 - 10 kg/Hr., Glue reactivating infrared heating unit positioned between glue roller and pressure zone to improved edge quality.

Pressure zone:
(1) Large driven & (3) Secondary pneumatically-controlled idle rollers.

Workstations:
Front & Rear End Trimming Unit: (2) 0.5 HP (0.35 kW) 12,000 RPM Motors, Electro-pneumatic reset for straight or chamfer trimming.
Top & Bottom Multi-Stage Trimming Unit: (2) 0.73 HP (0.55 kW) 12,000 RPM Motors with Vertical & horizontal tracing, 2-Position
Programmed controlled indexing, Position #1 with slight projection of 0.2 mm & Position #2 with flush trimming without projecting edge.
Multifunction Profile Trimming Unit (Corner Rounding): (2) 0.54 HP (0.4 kW) 12,000 RPM Motors, 20 MPM (65 FPM)
Max. feed speed, 3 mm (0.12")
Max. edge thickness, 38 - 100 mm (1.50 - 3.94") Workpiece thickness.
Top & Bottom Multi-Profile Scraping Unit: Servo control in/out from operator panel & pneumatically-controlled blow-off nozzle & PVC Scrap box.
Top & Bottom Finish Scraping Unit: With Digital "quick-set" system followed by detergent spraying unit to eliminate glue residue.
Top & Bottom Buffing unit: (2) 0.24 HP (0.18 kW) 1,450 RPM Motors.

Machine & Operator Control:
"POWERTOUCH PC2X" Control with 256 MB RAM, USB Port, 1 GB Flash card, Internal modem for remote diagnostic access link, & 21" TFT Flat screen monitor.
8,967 Hrs. on 9/30/20.

Complete with:
Electronic height adjustment for different panel thicknesses.
Sound enclosure.
32" Dia. Roll plate.
Original production instructions manual.

Dimensions: 260" x 60" x 70" H.
Weight: 6,650 Lbs.
