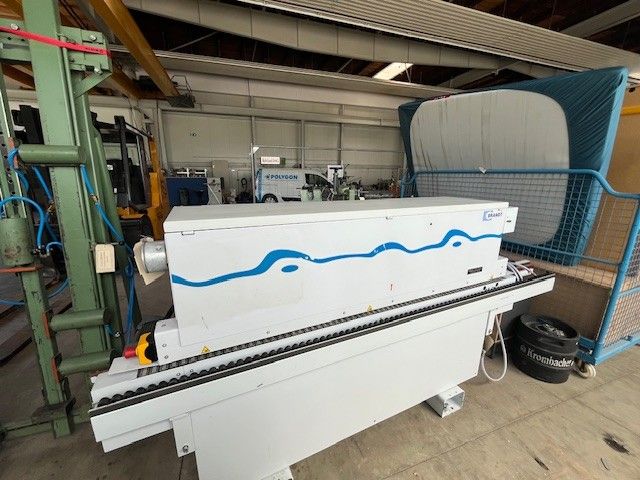

Brandt Optimat KDN 330

Used machine
With rapid heating tank
With contact heating shoe
With trimming burr with 2 trimming motors
With flush trimming unit with 2 trimming motors with straight/radius insert combination
Digital counters enable fast and defined, i.e., repeatable, adjustments
Two-point pneumatic adjustment of the upper and lower trimming motors
Scraper unit for finishing with horizontal/vertical tracing
Workpiece thickness 8-50 mm
Edge thickness 0.4-3 mm
Feed speed 11 m/min.
Connected load 4 kW
Compressed air connection 6 bar
Weight 750 kg
Machine length 3150 mm
