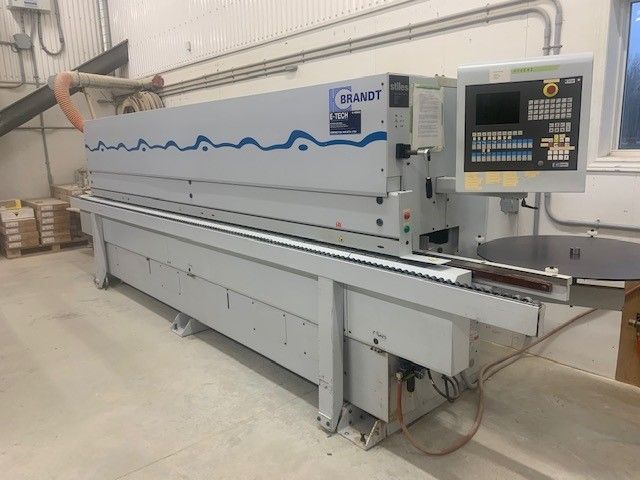

Brandt Optimat KDN 650 C

PC 16 control system
LCD Screen
Integrated electronic line control. No limit switches
Automatic magazine for coil (up to 800mm diameter) or strip feeding
Hot melt granulate with 12 minute heat up
New glue pot -Quick change tank
Reversible rotation glue applicator with retractable glue roller
Heavy duty guillotine -Infrared heating between glue station and pressure zone
1 driven and 2 idle pressure rollers
Double motor end trim with straight and chamfer capability up to 15 degrees
Top and bottom trim with digital "Quickset". Tilt 0 to 25 degrees
Program controlled indexing
ontour trimming unit with profile corner trimming
Scraping unit for rigid PVC edging
Buffing unit -Sound enclosure with centralized dust extraction
Electronic frequency changer for trimming units with integrated electronic motor brakes
UL/CSA electrics
Edgeband thickness .4-12mm
Edgeband height 12-60mm
Minimum panel length 160mm
Minimum panel width 65mm
Panel thickness 8-55mm
Two feed speeds: 14m/m and 11m/m when corner rounding -3HP feed motor
