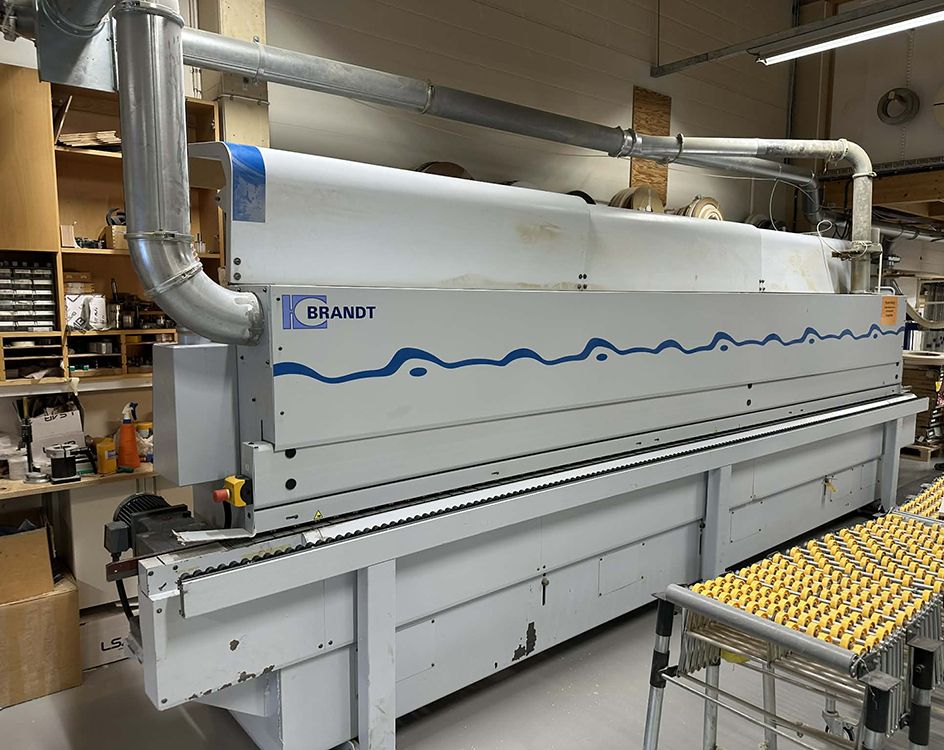

Brandt Profiline KDF 670-C Hiflex

Technical data:
Edge list thickness: 0.4 – 12 mm
Capsorship: max. 3.0 x 45 mm
and 0.8 x 65 mm
Workpiece thickness: 8 – 60 mm
Feed speed: 11 – 16 m/min (see below)
When choosing the edge strip thicker than 3 mm, the feed speed is switched
automatically over to 14 m/min.
When selecting mould mills, the feed speed is automatically switched to
11 m/min.
Electrical connection: 400 V, 3 phase, 50 Hz
Compressed air connection: 6 bar
Connection power approx. 17 kW
Machine length: 6 860 mm

Machine equipped with:
-Pre-squates
-Aging unit (quickmelt)
-Capsule
-Pre-securative unit
-Freet sets
-Form milling unit (rounding unit)
-Sicking units (for fagining or rounding)
- Surface control unit (for removal of glue residue)
-Polerator
