Braner SLITTING LINE Coil weight: 50000 lb

Material width: 12 - 72 in
Material thickness: 0.020 - 0.187 in
Coil ID: 20 - 24 in
Maximum coil OD: 72 in
Line direction: right to left
Powered entry turnstile rotation

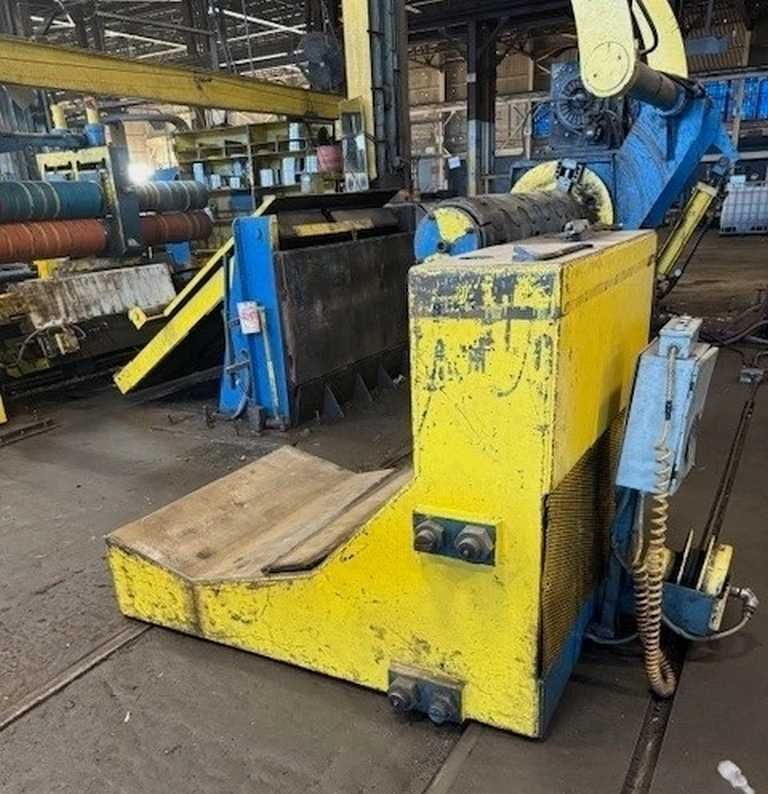

Entry L-type coil car
Hydraulic lift and traverse
Mandrel uncoiler
Powered holddown roll
Hydraulic mandrel expansion
Air cooled brake
Feedup motor
Sliding base
Hydraulic peeler table
Driven entry pinch rolls
Adjustable edge guides
Two slitter heads
Turret type slitter base
Arbor diameter: 9 in
Powered head rotation
Powered arbor adjustment
Slitter motor power: 100 hp DC
Pit crossover table
Two scrap winders
Powered open and close
Heavy duty design
Tension stand
Combo tensioning design
Pneumatic tension pads
Coated tension rolls
Wichita tension brake
Recoiler
Powered gripper
Hydraulic overarm separator
Powered pushoff
Recoiler motor power: 250 hp DC
Exit L-type coil car
Hydraulic lift and traverse
Exit 2-arm turnstile
Powered rotation
Electrical system
Hydraulic system
Control system
Tooling included
