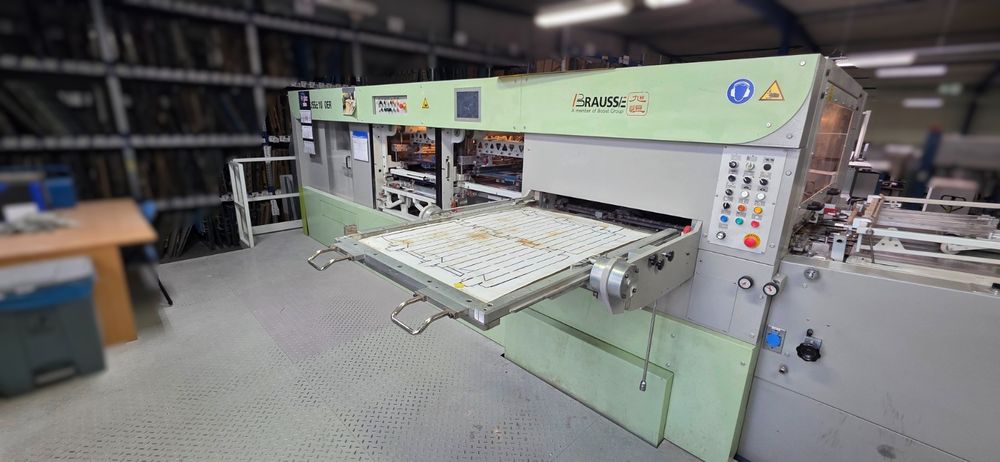

Brausse 1060 IR

Fully Automatic High-Performance Die Cutting Machine With Integrated Stripping And Blank Separation
Designed For Industrial Folding Carton And Packaging Production.
The Machine Features :
A Non-Stop Feeder And Delivery System For Continuous Operation And Maximum Productivity
Max. Sheet Size: 1060 × 750 Mm
Min. Sheet Size: 400 × 350 Mm
Paper From 90 G/M²
Carton Up To 2000 G/M²
Corrugated Board Up To 4 Mm
Max. Die Cutting Pressure: 260 Tons
Mechanical Speed: Up To 6,500 Sheets/Hour (Designed For Up To 8,000 Sheets/Hour)
Quick Lock Die Frame
Quick Lock Stripping And Separation System
Ultrasonic Double Sheet Detection
Anti-Static System
Precision Gripper Transport System
Pneumatic Die Locking
Motorized Pressure Adjustment
Heavy-Duty Drive System
High-Precision Registration Control
Complete Tooling Included
Quick Change Frames
Automatic Waste Removal
Non-Stop Delivery With Automatic Pallet Changer
Mitsubishi Plc Control With Omron And Siemens Components
Touchscreen Hmi Control Panel
Full Ce Safety Certification
Power Supply: 400 V / 50 Hz
Total Power: 26 Kw
Air Requirement: 6 Bar / 600 L/Min
Dimensions: Approx. 9425 × 4530 × 2640 Mm
Net Weight: Approx. 22,000 Kg
