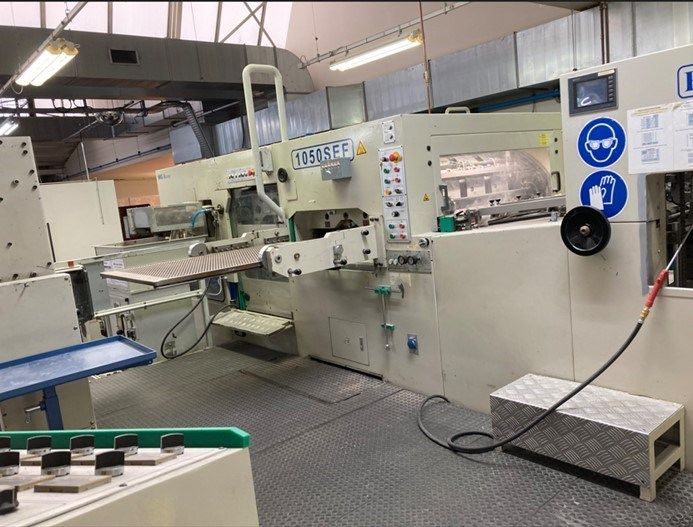

Brausse 1060 SEF

Hot Foiler Embosing & Die Cutting
Max paper size: 1050 x 750mm
Min paper size: 400 x 370mm
Max Cutting Size: 1040 x 730mm
Min Gripper Margin: 8mm
Inner chase size: 1145 x 755mm
Face Plate Size: 1080 x 736mm
Stock Range: 0.1 – 2mm
Max Cutting Pressure: 300 tons
Max Speed: 7,500 cycles per hour
LCD Screen Display Control System

Die cutting
Hot Foil Stamping and Embossing Unit
Individually programmable 2 Draw Foil Pulls with Rewind
12 Zone heated Bed complete with Honey Comb Base and Individual Temperature Controls for each zone
Max Width Foil: 1020mm (41”)
Max Stamping Width: 1020mm (41”)
Max Stamping Depth: 730mm (28”)
Max Foil Pull: 730mm (28”)
Foil supply bars Max capacity: 8” roll diameter
Rewind Unit Max Capacity: 16” roll diameter
