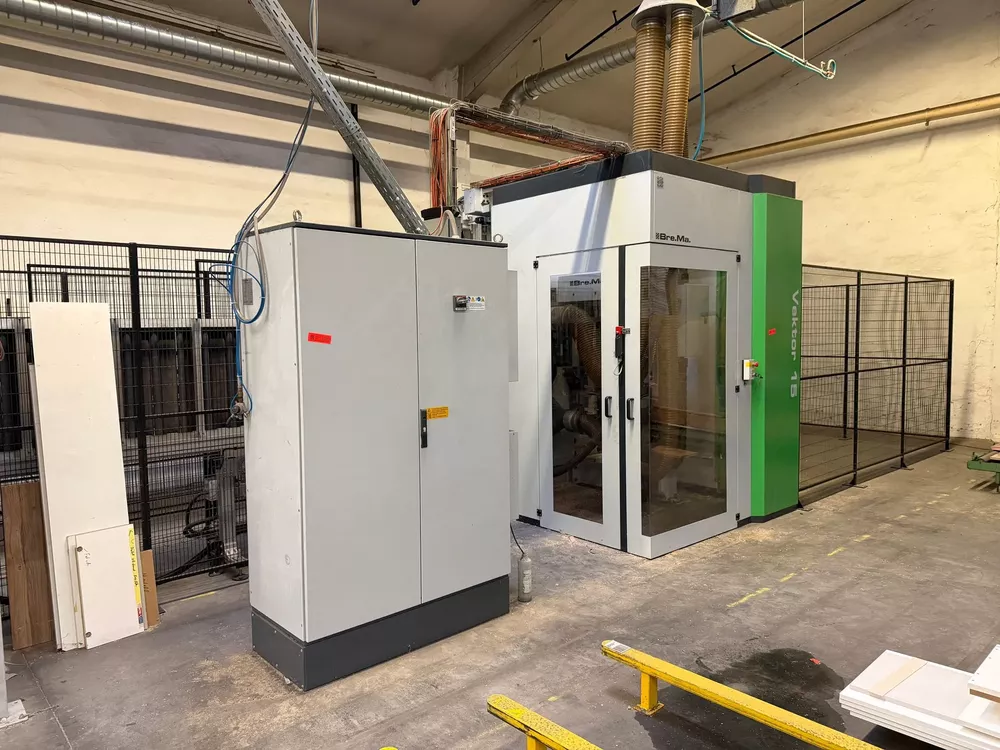

Brema VECTOR 15-13

CNC Drilling and Insertion Machine
Technical data:
Control: CNC
Installed power: 11 kW
Air consumption: approx. 200 NL/min
Extraction capacity: approx. 4500 m³/h
Air pressure: 6–7 bar
Workpiece thickness: up to 80 mm
Max. workpiece width: 1300 mm
Minimum workpiece size: 240 × 40 × 8 mm
Turret tool changer: 10 positions
Spindle speed: up to 18,000 rpm
Weight: approx. 1,800 kg

Area of ​​application:
Vertical machining of furniture and cabinet parts, drilling, milling, grooving, glue injection and dowel insertion in one operation.
Ideally suited for industrial production lines with automated parts handling.

Highlights:
Compact design with minimal space requirements
High processing quality due to the vertical position of the plate
10-position turret tool changer (NC-controlled, < 2 seconds)
Laser-based zero-point detection system
Optional integration into production lines with robot systems (ROS)
Full compatibility with Biesse SmartConnection and Sophia IoT systems
