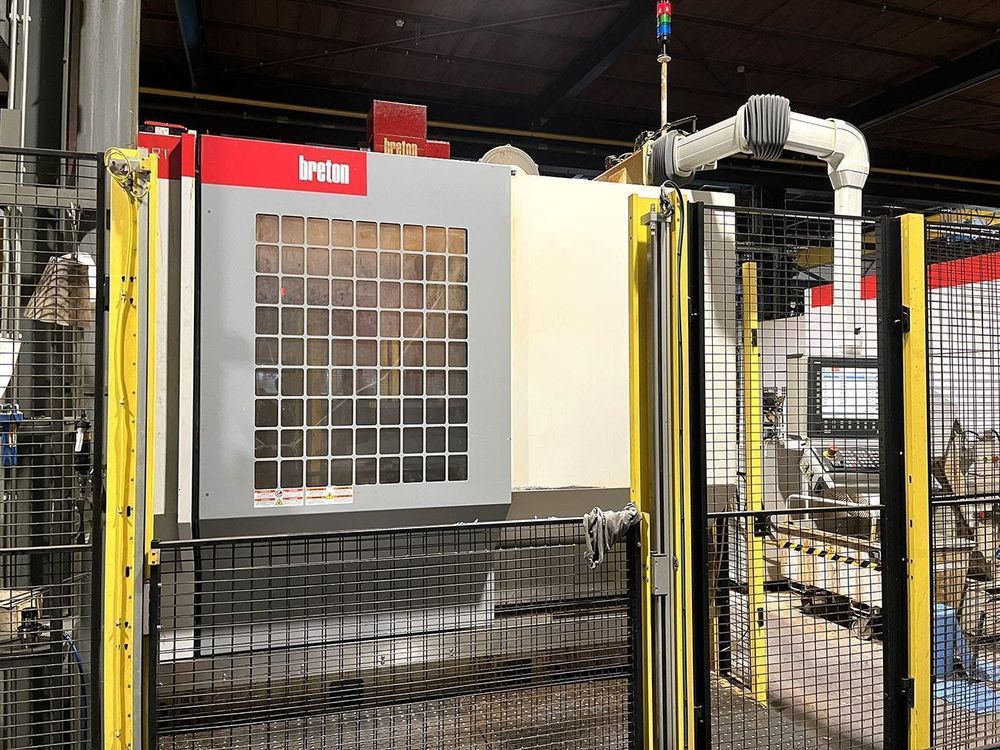

Breton Ultrix 800 Max turning diameter: 1100 mm

X-axis travel: 800 mm
Y-axis travel: 900 mm
Z-axis travel: 600 mm
A-axis swivel range: -30° / +110°
C-axis: continuous

Control: Siemens 840D Solution Line
Spindle motor power (turning): 40/30 kW
Spindle motor power (milling): 55/40 kW

Max spindle torque (turning): 1500 Nm
Max spindle torque (milling): 22 Nm
Max spindle speed (turning): 1000 rpm
Max spindle speed (milling): 40,000 rpm

Tool taper (turning): KM63
Tool taper (milling): HSK-E40
Tool magazine capacity: 150 positions
Tool positions for turning: 24
Tool positions for milling: 126

Chuck diameter: 700 mm
Max workpiece weight: 700 kg
Turret: yes
Coolant pump: yes

Machine length: 4655 mm
Machine width: 5890 mm
Machine height: 3415 mm
Machine weight: 17 ton

Features / Equipment
40,000 rpm high-speed spindle
Table diameter 700 mm with hydraulic clamping
150-position tool changer
Chip conveyor belt
Cooling system with recovery
Coolant temperature control
High-pressure cooling (40–70 bar) through spindle
Smoke extraction system
Chip collection box
Laser and mechanical tool measuring probes
Renishaw workpiece probe
