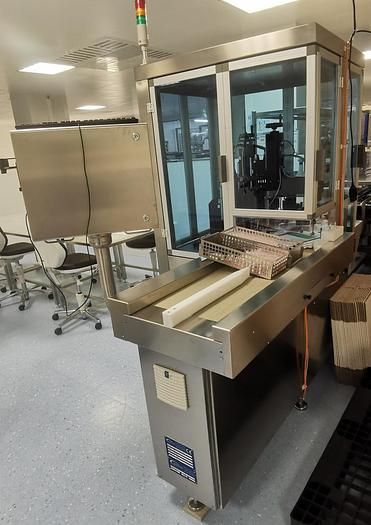

Brevetti A 30, Ampoule Inspection Machine

• Automatic inspection machine for ampoules containing aqueous
and slightly viscous solutions.
Not suitable for protein solutions. Ideal for beginners.
• Maximum throughput: 12,000 ampoules/hour
• Ampoule diameter: 8–36 mm,
maximum height: 10–15 mm 135 mm, depending on the format
• Three high-resolution cameras: 2 black and white
for particle inspection, 1 color for fill level inspection
• One inspection for static inspection of the ampoule tip (shape, ring color code)
• One inspection for dynamic inspection of the ampoule tip
(cosmetics, OPC color dot check, and predetermined break point)
• Format sets for 1+2 ml ampoules (Ø 10.75 mm),
5 ml (Ø 14.75 mm), 10 ml (Ø 17.75 mm)
• Manual loading of ampoules via cassettes
• Single-track conveyor belt output of good ampoules
to the downstream machine (approx. 300 mm long)
• Ejection of defective ampoules into standard Brevetii cassettes
• Siemens S7-300 PLC
• Siemens Simatic HMI, menu languages: German + English
• Electrical connection: 220/24V/50Hz
• Last maintenance performed by Brevetti technician in 02/2023
• Qualification documentation provided
• Only 350 operating hours!
