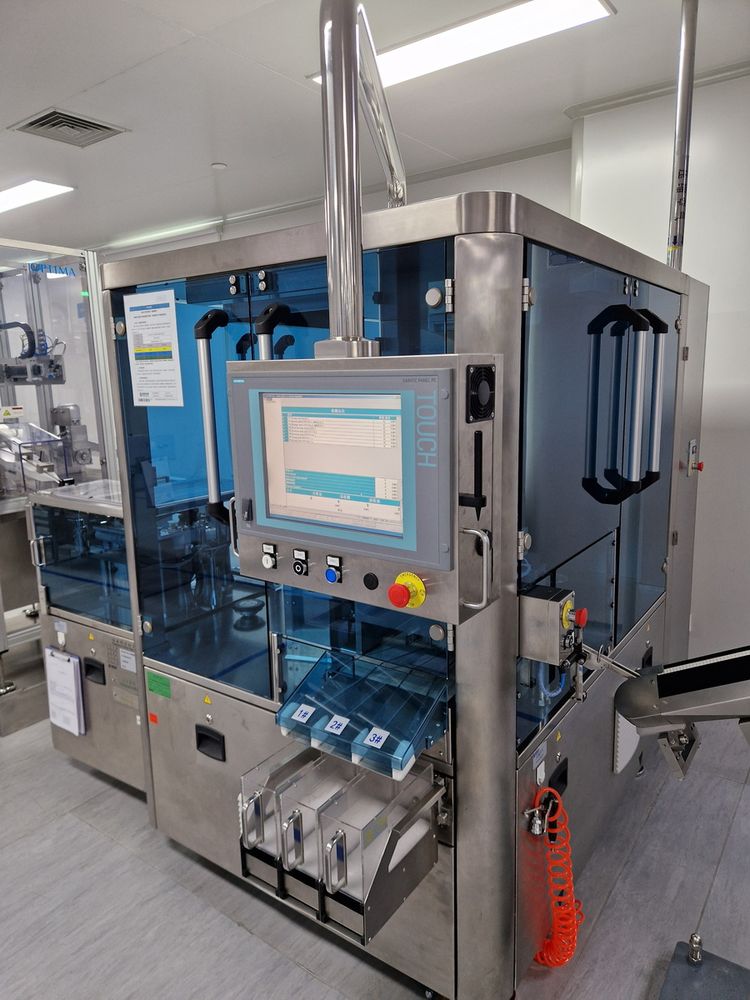

Brevetti K 15-C 200 Inspection machine

Fully automatic inspection machine for prefilled syringes with water-based, clear solutions, not suitable for protein solutions
Maximum output 12,000 ampoules/hour
For prefilled syringes diam. 6.85-14.45 mm, height incl. flange and needle guard max. 120 mm, flange diam. max. 24 mm, depending on format set
Automatic syringe feed from upstream machine via screw conveyor
Syringe turning station for foreign objects and liquid residues in the needle
Rotary device for foreign object detection
3 CCD cameras for
Reflective foreign object detection station (foreign objects such as glass, white spots, etc.)
Non-reflective foreign object detection (colour dots, colour blocks, metal chips, etc.)
Reflective or non-reflective foreign objects and aluminium hydroxide detection station
1 inspection station for flange damage and missing pistons
1 inspection station for needle caps
1 inspection station for piston defects
1 inspection station for glass cracks and liquid level above the piston
1 inspection station for glass cracks and liquid level below the piston
3 reject ejectors:
Non-compliant foreign syringes
Visually non-compliant syringes
Non-compliant syringes for leak detection
Outflow of good ampoules via screw conveyor into 1-lane conveyor belt to downstream machine
PLC Siemens S7-300
HMI Siemens Touch, menu languages English + Chinese
Windows operating system
Drive 220/24V/50Hz
