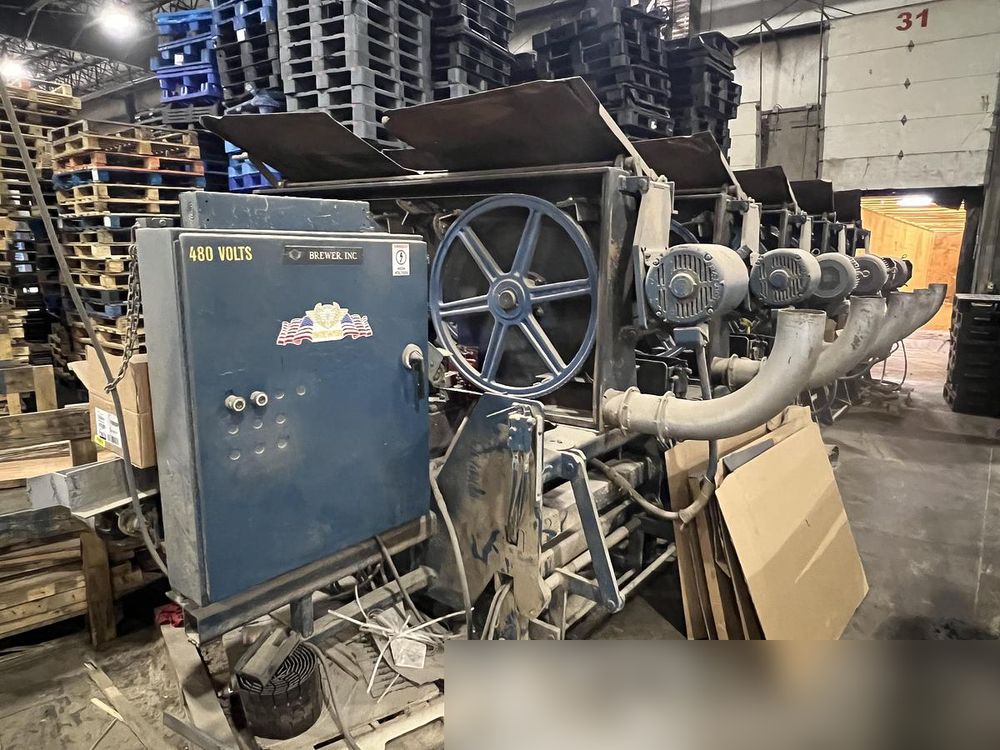

Brewer Golden Eagle 2000

5-Head Resaw
Unit has been service.
Bandwheels have been resurfaced.
Machinery is disconnected and ready to ship.

Specifications:
Frame: Heavy 5/8" plate and 4" X 4" tubing is used for reinforcing to avoid the bending action found in lighter weight band saws.
Arbor & bearings: (2) bearing design (no car hubs) 2 15/16" double roller bearing, arbors are stress proof steel
Bands: Will run 1", 1 1/4", 1 1/2", 2" wide. length of band 16'6". .042 body, .083 kerf
Arbor motor: 20HP 1800 RPM, 400 VAC 50 HTZ 3-phase
Hydraulic feed system: 30 gallon JIC flat top reservoir, 5 hp Electric pump motor with Continental Hydraulics PVR6 Industrial
Vane Pump operating the saw hydraulic motor drives via Hydraforce Cartridge Solenoid directional valves.
Eaton Lever operated 31930 directional valves for Saw lift. Schroeder
Industries Z media 10 micron absolute filtration.
Eaton Char-Lynn S+ Series Hydraulic Motors.
Dust pickup: 6" round outlet.
Band wheels: 36" diameter X 2" wide wheels made from ductile iron.
Wheels dynamically balanced at 1000 RPM for vibration free running.
These are far superior than wheels torched out of steel that other manufacturers commonly use.
The flatness and hardness of our wheels result in much longer life.
Guides: Roller.
Page 12 of 36
Maximum material size: Standard 8" wide X 12" tall cants.
Band will adjust up to cut 12" tall.
Lumber height adjustments: Hydraulic hand valve powered by central unit that allows any combination of cuts with finger tip control.
Band tracking: Precision machined v-slide rails with adjustments to align and track blade in all directions.
Angle of attack: Band enters cut on 5E angle to wood flow to reduce shock on band.
This translates into longer blade life and a better finished product.
Blade tension: Two large industrial air bags maintain constant pressure on blade, absorbs shock and permits easy blade change.
Blade guards: Large steel doors enable operator to change blades easily while serving as protection and dust enclosure.
Wire brushes: Placed on each saw unit to keep wheels and blades free from dust buildup and eliminates need for messy drip system.
Electrical panel: Electrical - control console and starter panel is pre-wired for fast installation.
First classprofessionally built panel with main circuit breaker full voltage IEC starters, overload protection, 24 volt control circuit, emergency stop buttons located on both ends.
Al wiring in conduit.
400 VAC 50 HTZ 3 phase.
